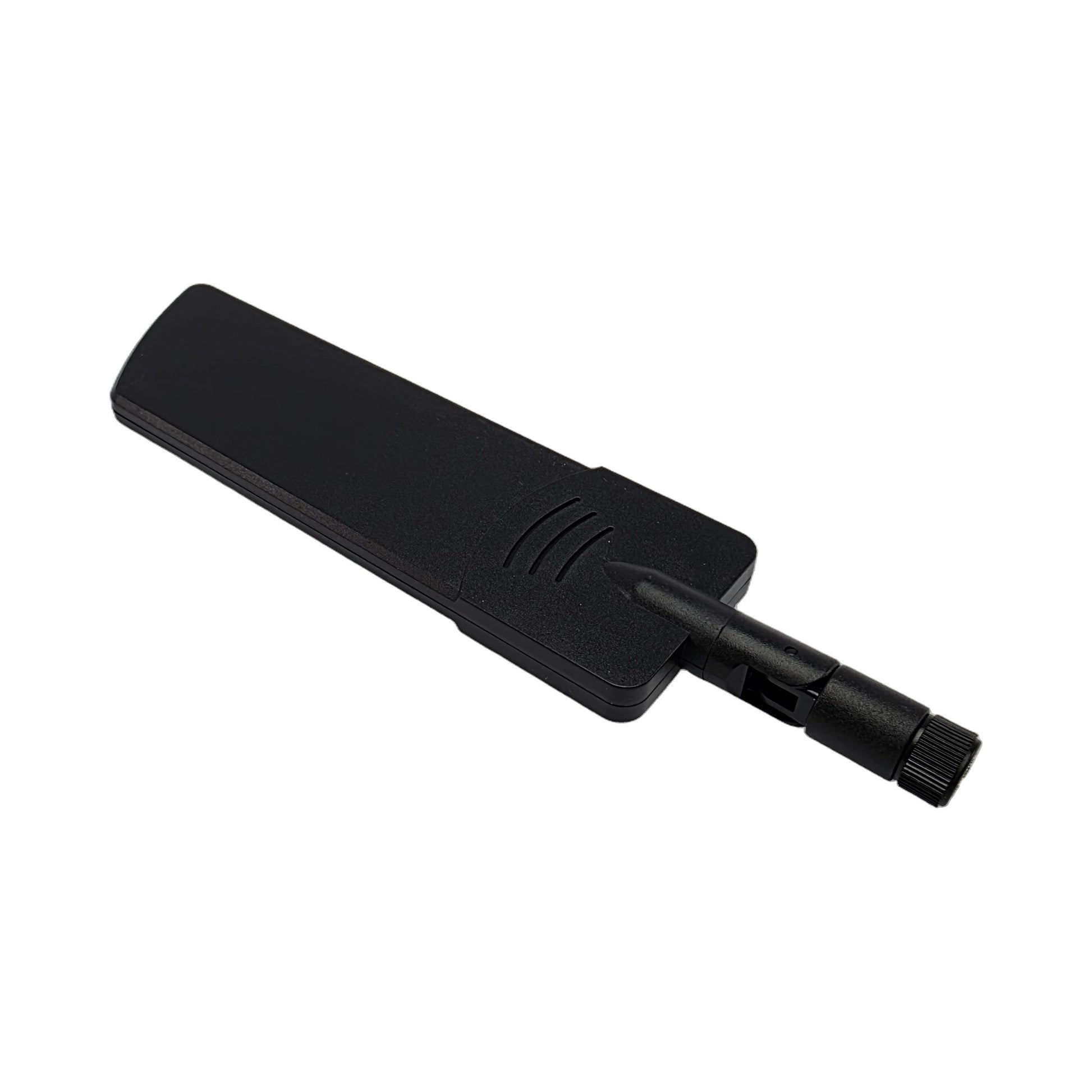

600-3800MHz Cellular Omni-Directional Paddle Antennas (SMA Connectors) PAIR

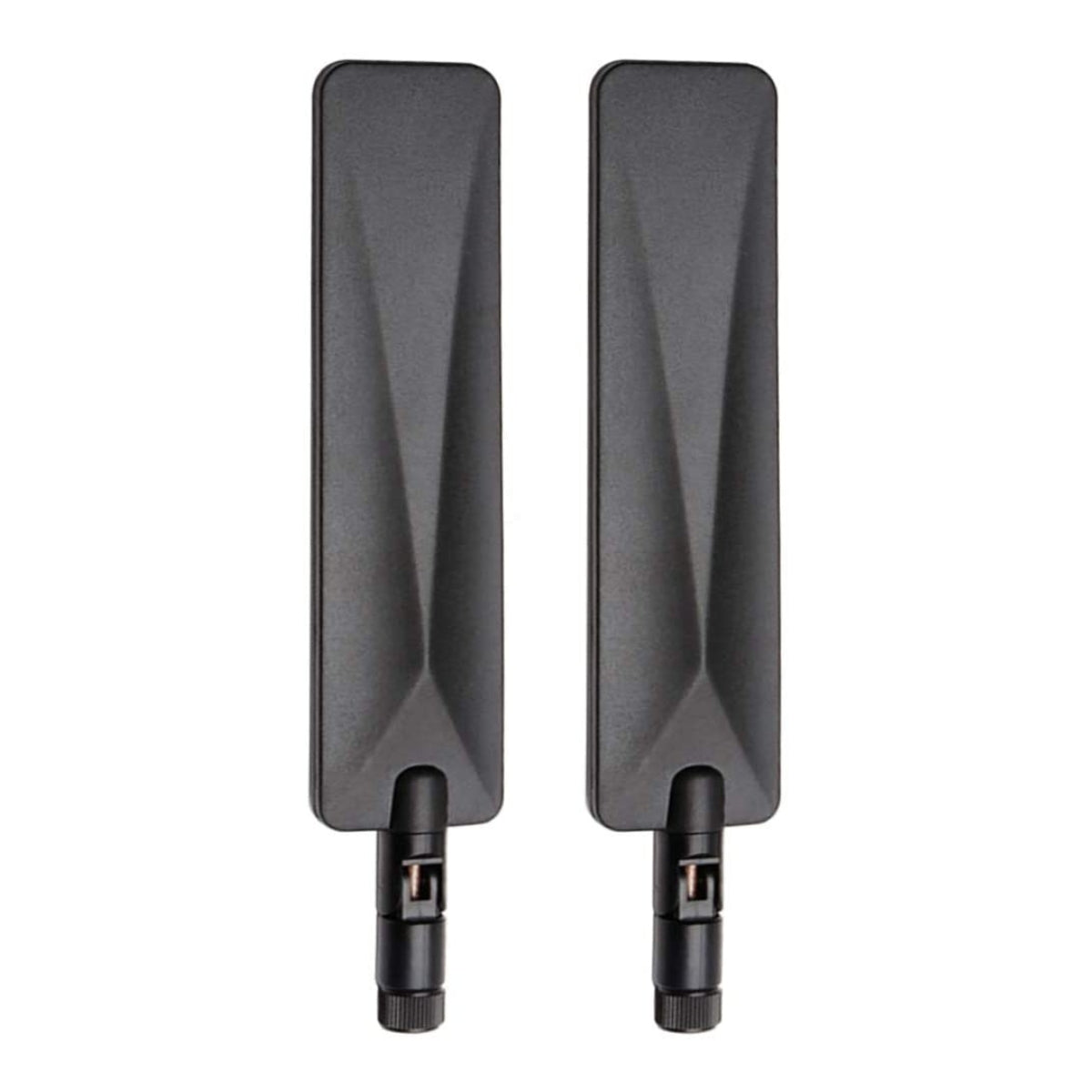

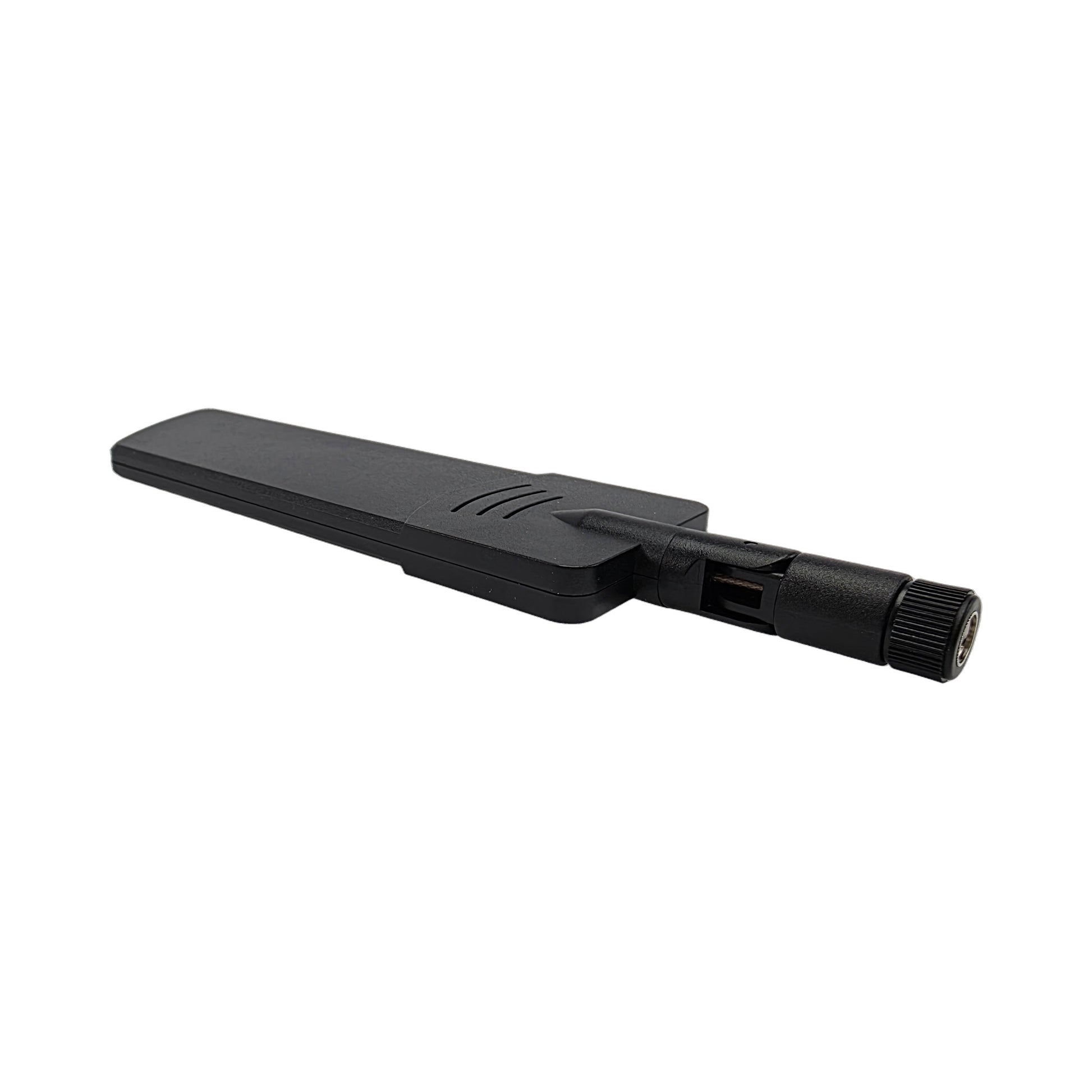

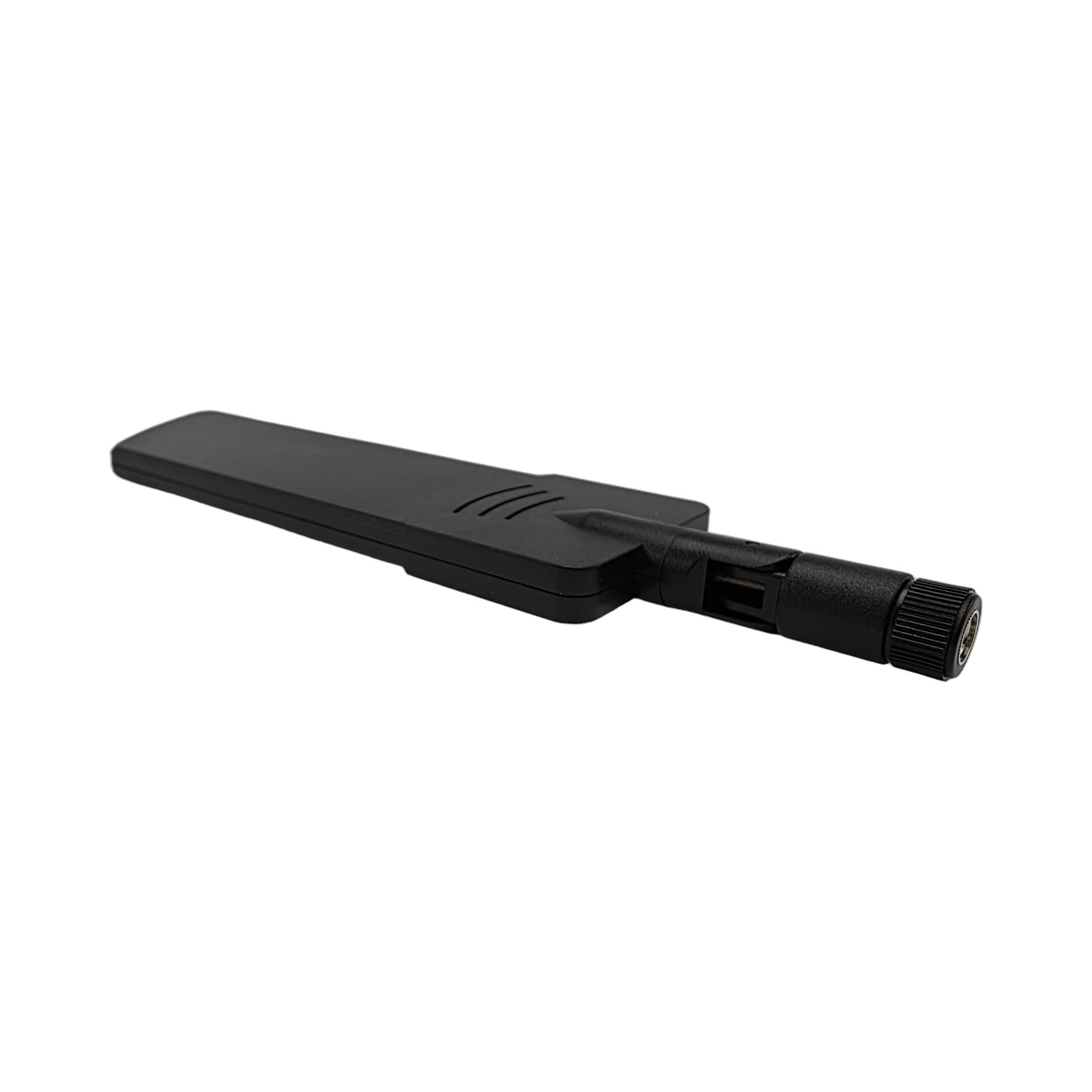

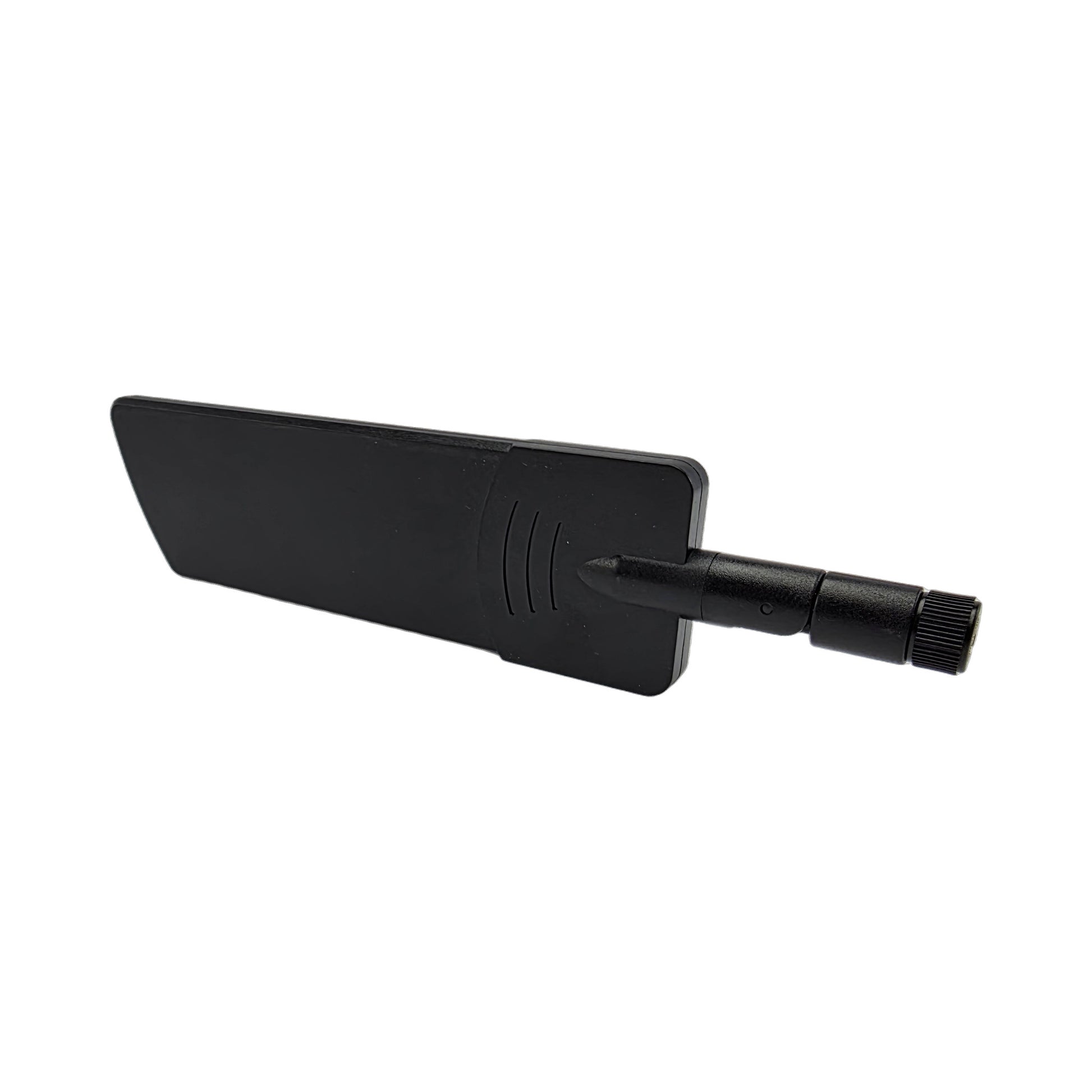

NOTE: We have updated these antennas to a new version that performs slightly better on n41 in lab tests. Yours may look different than our original paddles. Apologies for any confusion while we still have the old photos posted on this product listing.
These are well designed and constructed cellular flat, paddle style, omni-directional antennas. The antennas are wide band and cover the vast majority of frequencies currently utilized by US carriers. The Wireless Haven had these customized to include full gain rating in the 600Mhz range, for B71 / n71.

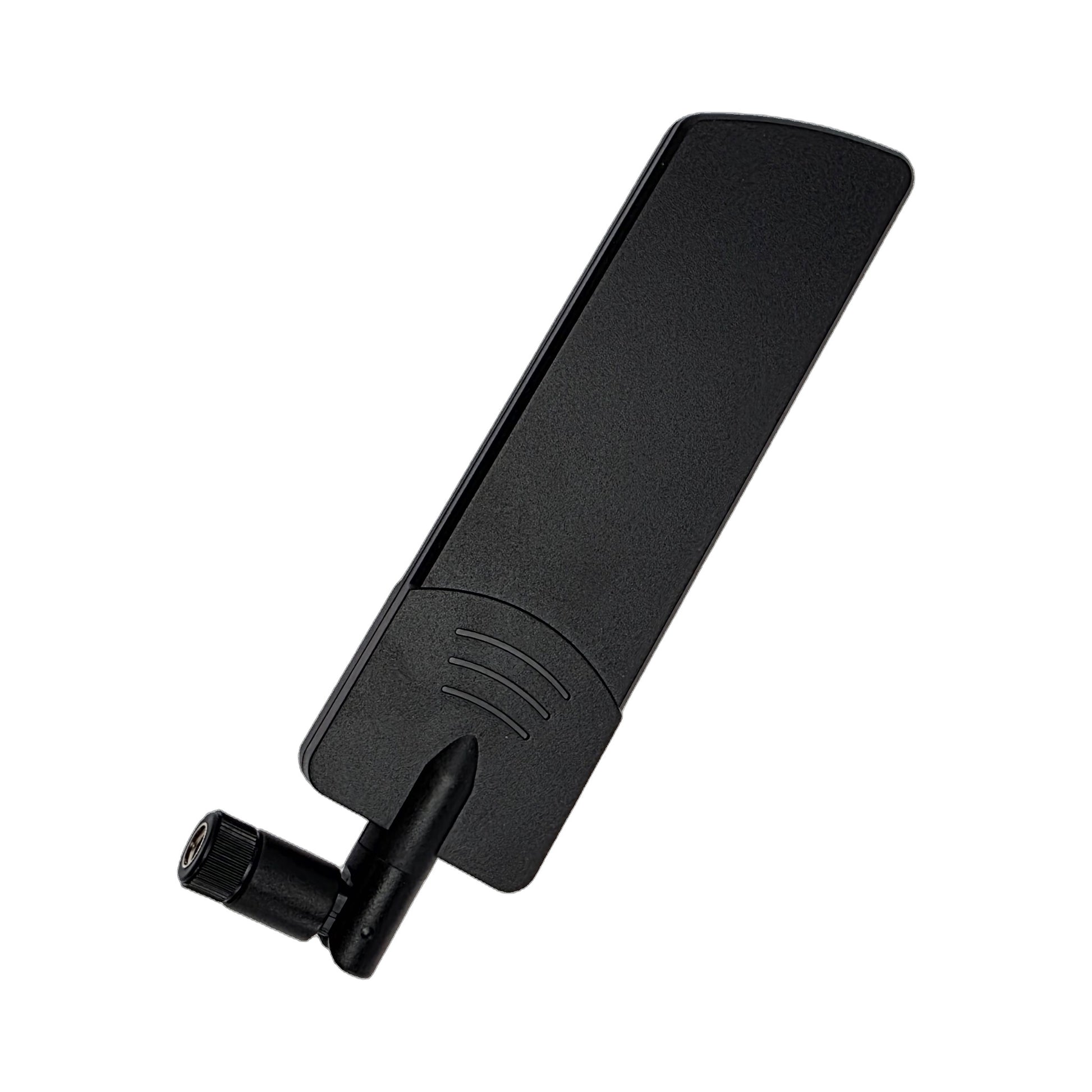

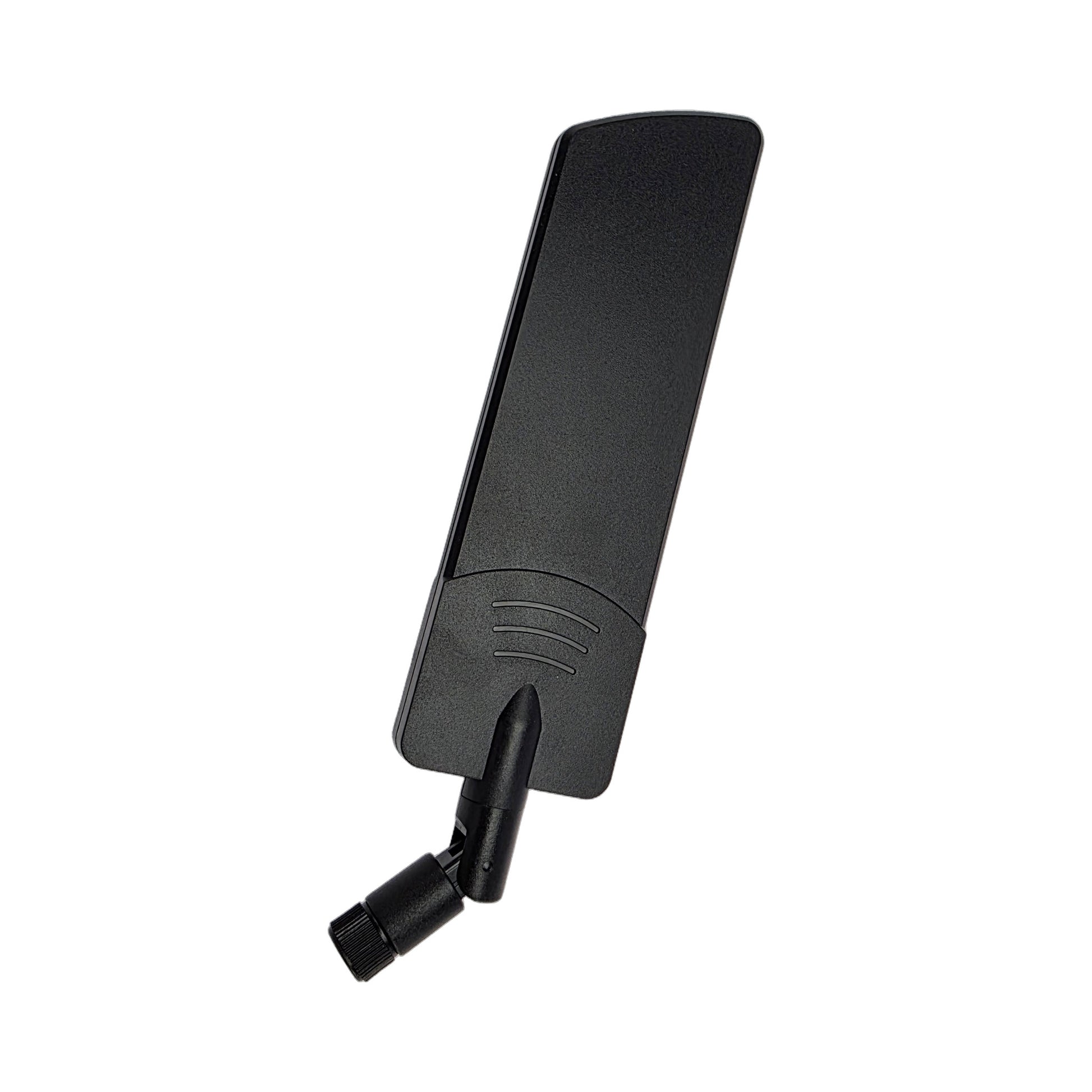

They are rectangular shaped, require no ground-plane, 6.625in (168mm) in length, and can be used in a straight position or hinged at 90 degrees.
Designed for indoors use.
Compatible with Cradlepoint, Peplink, WiFiX, GL.iNet, and all other Cellular Routers and adapters using SMA connectors
| SPECIFICATIONS: | |
| ELECTRICAL: | |
| Frequency Range | 600-3800MHz |
| Band width | 200MHz |
| Gain | 3 dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Directional |
| Polarization | Linear Vertical |
| Maximum Input Power | 10W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| MECHANICAL: | |
| Dimensions | Φ .531in x 1.5in x 7.625in (195mm) |
| Weight | 42g |
| Operating Temperature | -20℃ to+80℃ |
| Storage Temperature | -30℃ to+85℃ |

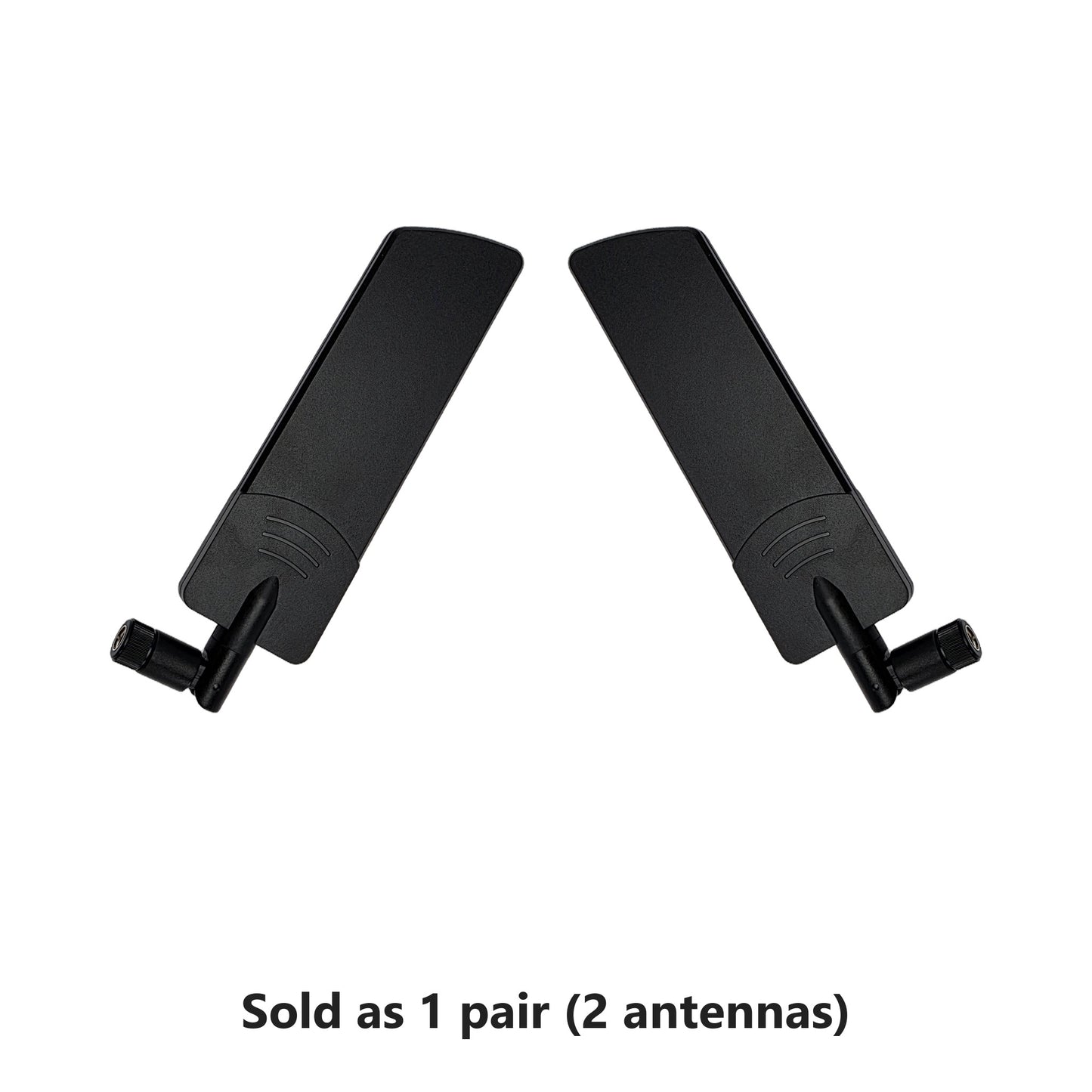

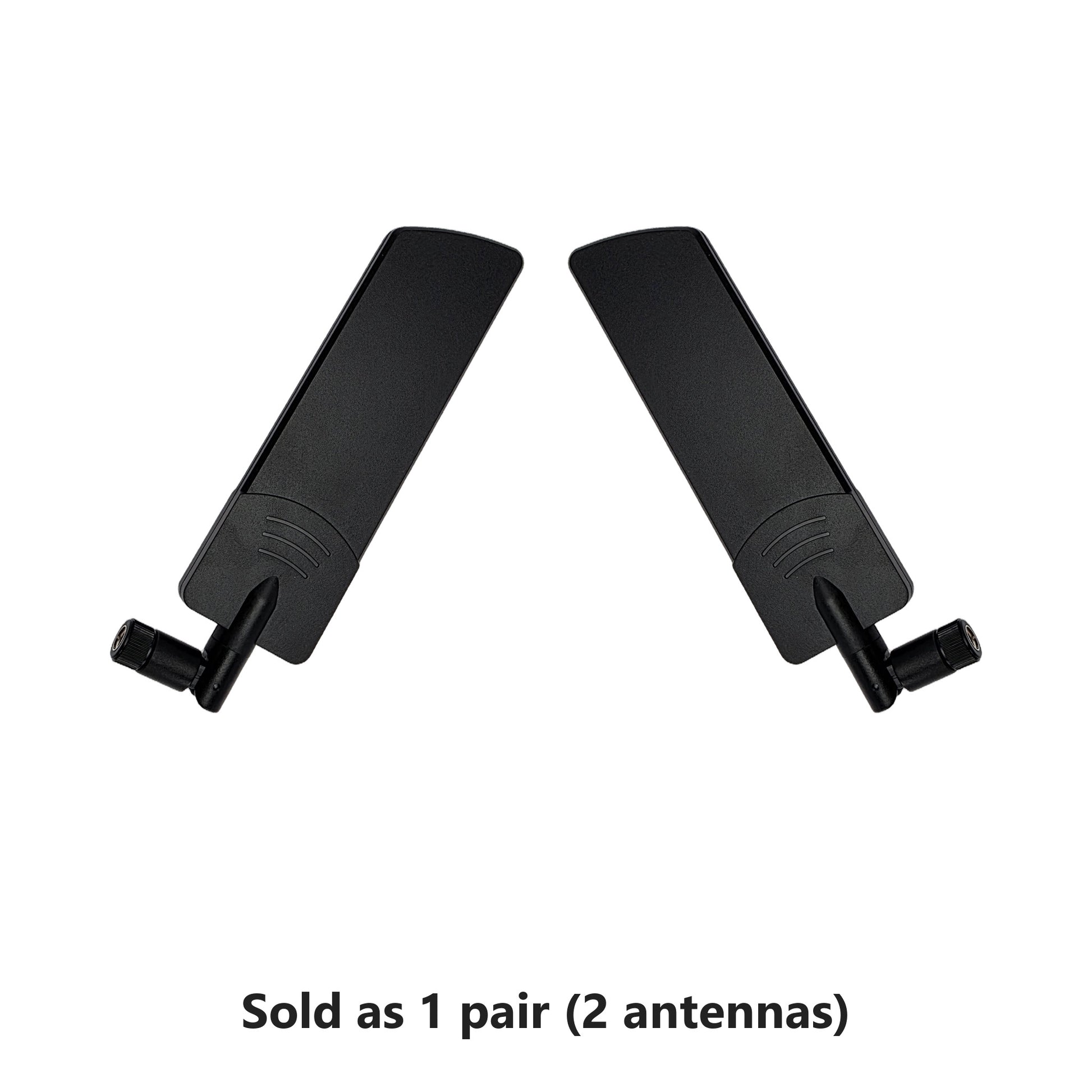

INCLUDES: One Pair (two single) of Omni-Directional Paddle Antennas.
