600-2700MHz 4G 5G 3-5dBi PCB Flat Antenna

600-2700MHz 4G 5G 3-5dBi PCB Flat Antenna

Regular price $14.30 USD
Regular price Sale price $14.30 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

This 600-2700MHz 4G 5G 3-5dBi PCB Flat Antenna  ( 50-ohm impedance) is a wide-band antenna is designed to cover all working frequencies in the 600-2700MHz spectrum, including all Cellular, Wi-Fi, ISM and GNSS bands.

Compatible with most 5GNR cellular bands as well as LoRaWAN and WiFi

Ground-plane independent.  May be screw, glue or adhesive attached for easy installation in an external antenna and/or enclosure.

Listing is for a single (1 piece) antenna.


Picture may vary slightly from the antennas in stock. Same performance and general size.



Frequency Range 600-960/1710-2700MHz
Gain 3/5dBi
V.S.W.R ≤3.0
Maximum Input Power 50W
Impedance 50Ώ

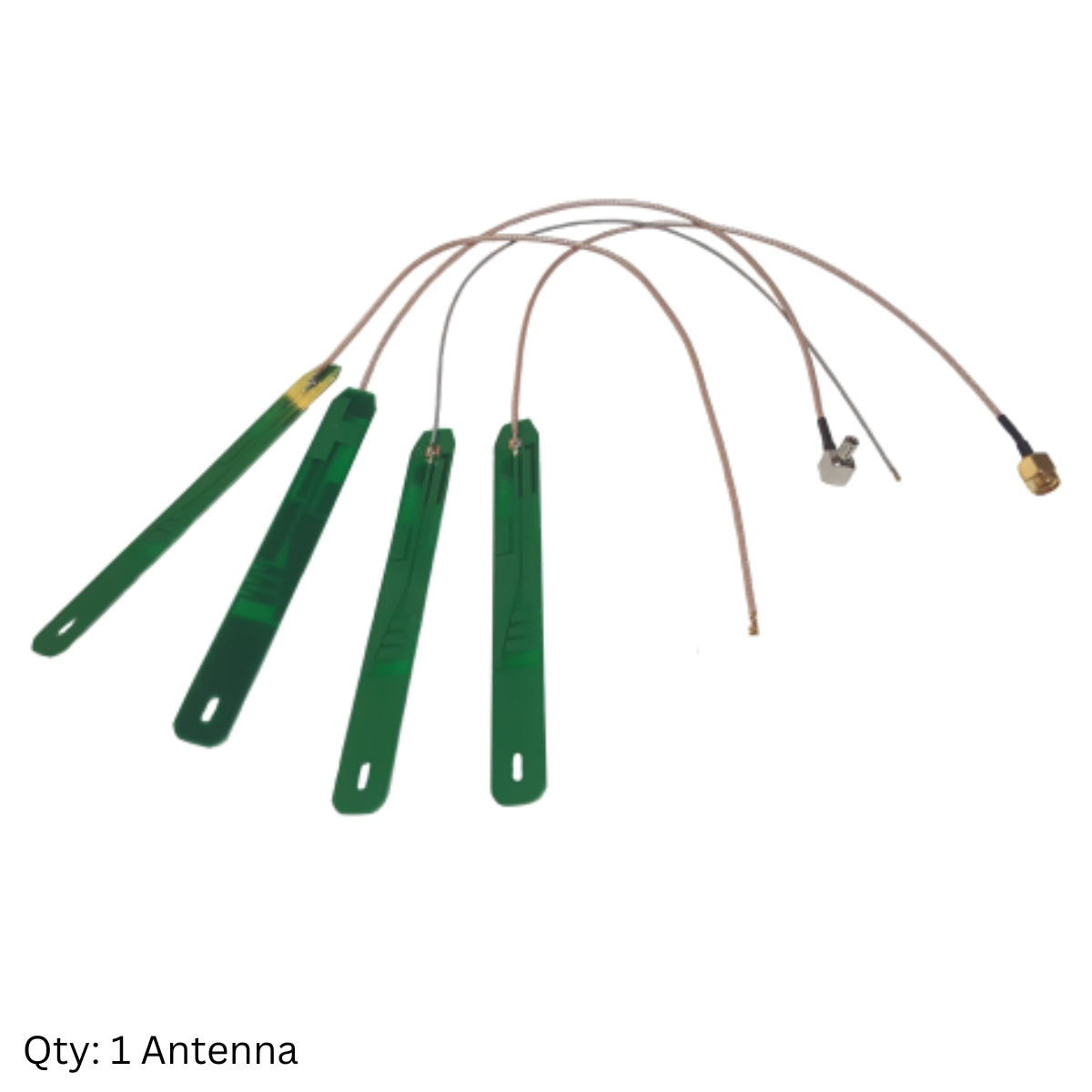

Connector U.FL (IPEX1) / MHF4 / TS9 / SMA Male
Cable Type RG178
Cable Length 10 cm
Antenna Radome Material PCB
Mount way Adhesive

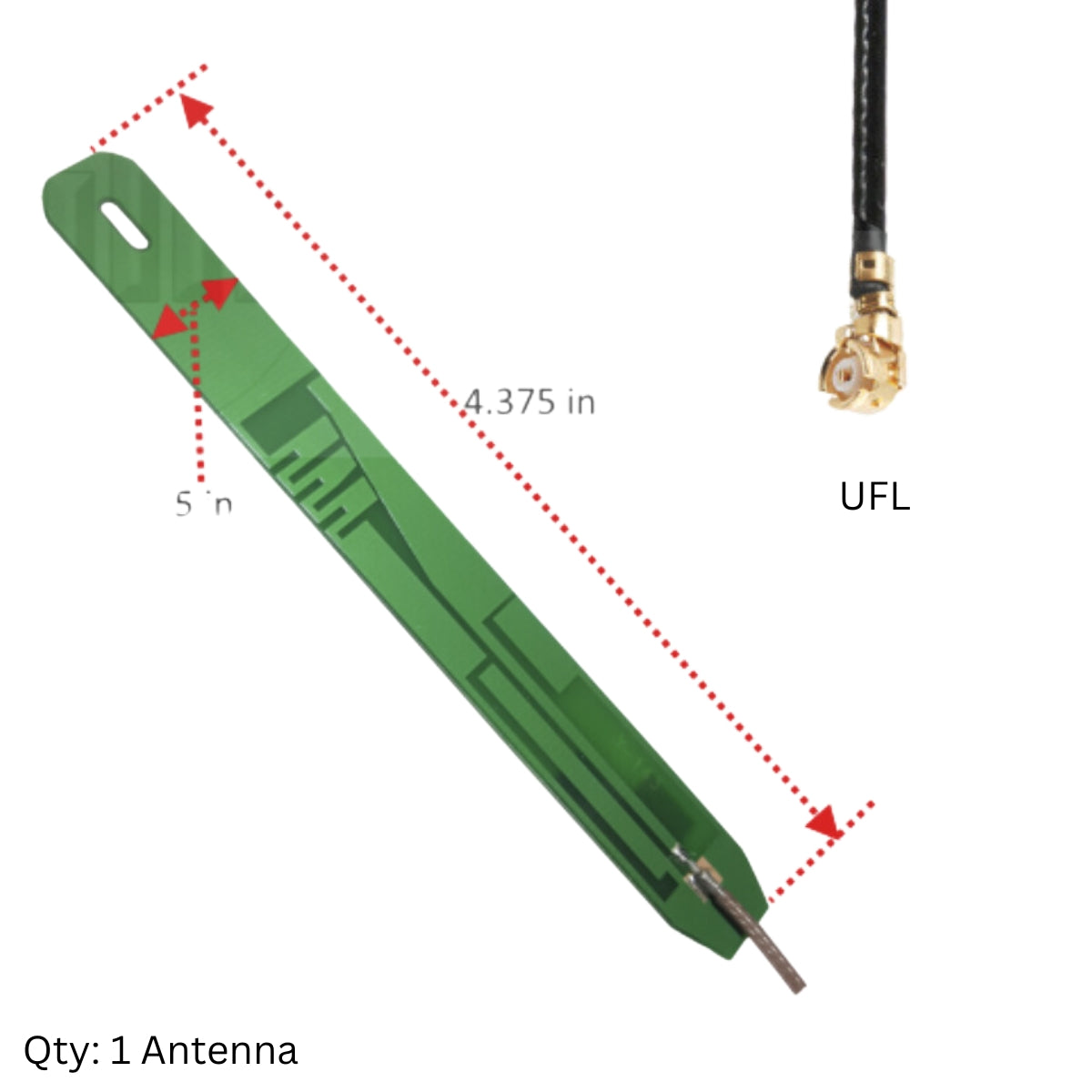

Dimensions 4.375 in x .5 in
Weight 8g
Operating Temperature -40 to+70
Humidity +15-70%RH
RoHS Compliant YES
