Product Details
The WiFix AO 1LW627V8 NF is a 700-2700MHz 6dBi-8dBi 4G 5G Omni-Directional Antenna. The antenna is Vertically Polarized, 23.625 inches (600mm) tall with N Type FeMale connectors. It’s Wideband design (700-2700MHz) covers the vast majority of carrier bands and frequencies, including Band B/n71 (b/n71 will pickup but not with very good results as in this range the VSWR is very high) and all 5GNR bands within the stated frequency range.
Compatible with most 5GNR cellular bands as well as LoRaWAN and WiFi
The antenna is available in Type N Male and Female connectors.
We recommend sealing the antenna connectors with dielectric grease and self-bonding silicon tape, when installing any outdoor antenna and cabling.
Its Omni-directional design makes it ideal for RV, marine, and other mobile applications. It is equally suitable for downtown urban settings and other static installations that lack clear Line of Sight (LoS) with the cellular tower--possible due to buildings, foliage and hills.
The AO 1LW627V8 NF is engineered with a strong fiberglass casing to provide ultimate sustainability against extreme weather conditions such as high temperature, strong winds and rain.
The N Type connectors are commonly used for outdoor applications, when connecting the antenna to a router utilizing 50 ohm low loss coax cable (i.e., LMR200|240|400|600).
The N Type Male connector is preferred when connecting the antenna directly to an external router Enclosure.
Mounting U-bolt clamps and brackets are included.
Customer Reviews

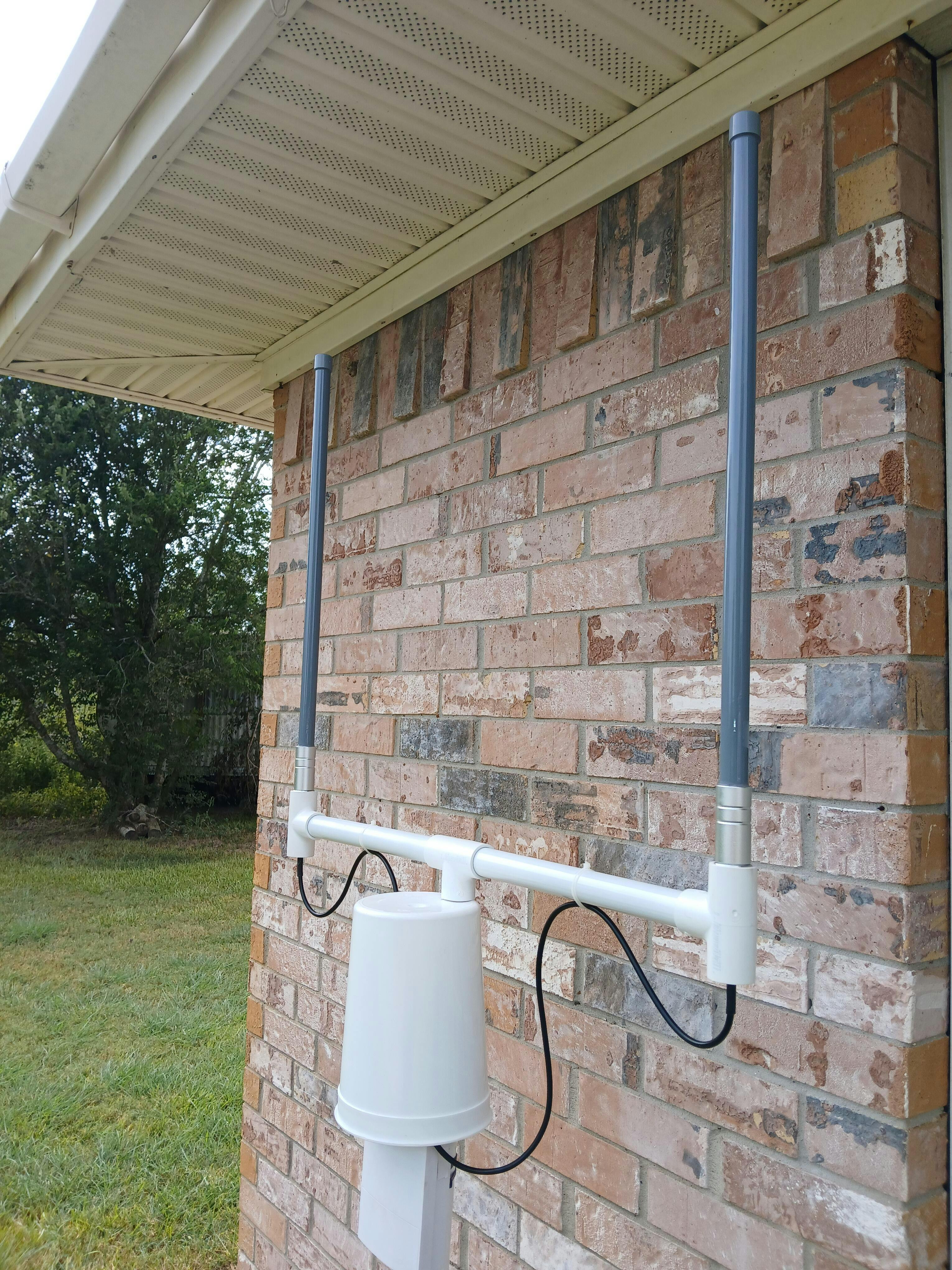

We implemented two of these antennas on an outdoor 4G router in MIMO configuration. These antennas have ~4db gain on B12 all the way up to B66 with ~5.5db gain. Nice wide bandwidth in a small antenna - it's 23.750" OAL!
Whether you choose the N Male or N Female connector (we used N Female) you'll enjoy an awesome improvement over any stock antennas! We're too close to the tower to use a Yagi-Uda or Logarithmic-Periodic so these antennas were chosen.
A very nice price for a very rugged antenna. These perform better than any other omni-directional antennas we tried.
Excellent customer service from Wireless Haven too...I initially chose the wrong gender for the connector and got my order fixed up correctly before they ever shipped out.
We will definitely be doing business again.
Thank you!
