Product Details

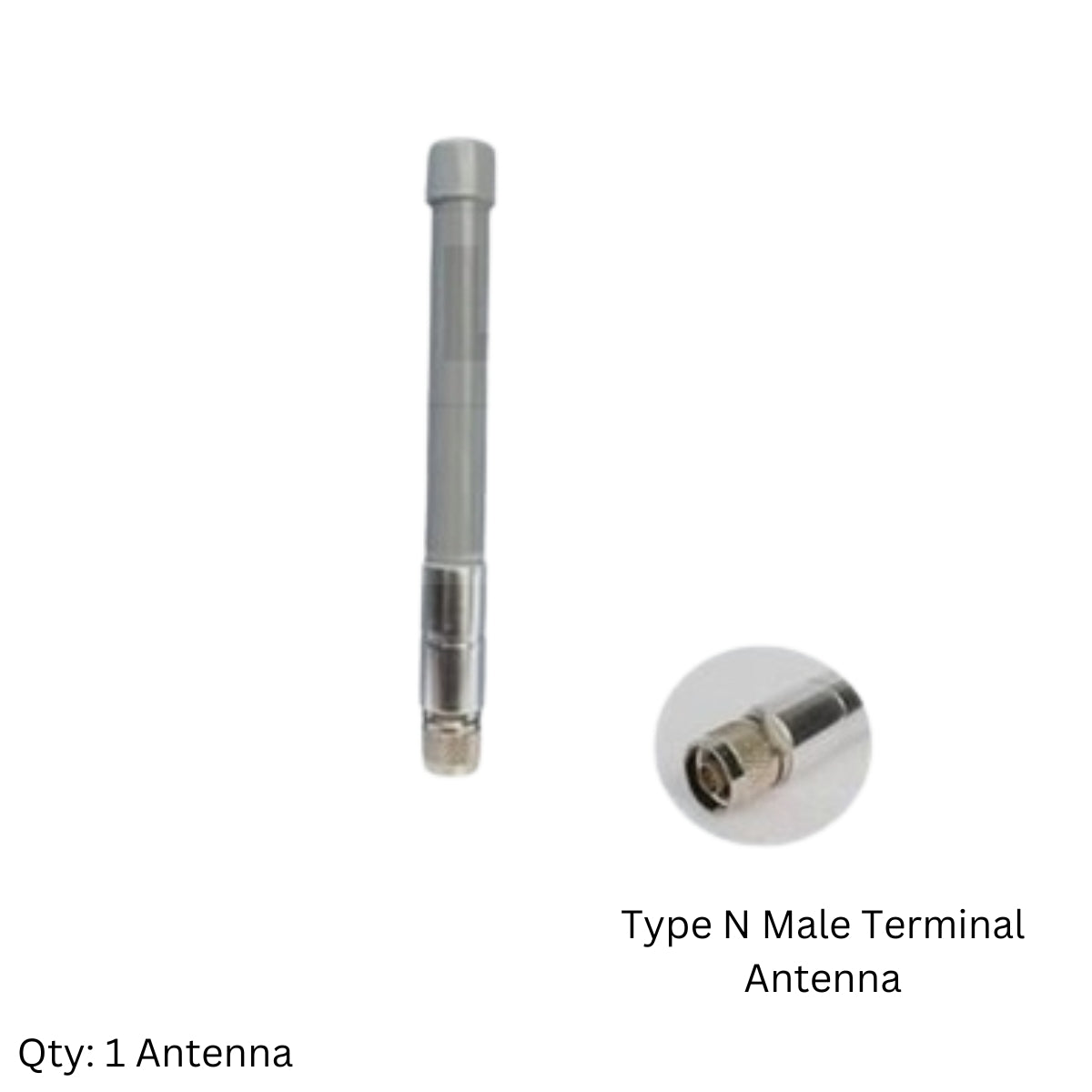

700-2700MHz Radome Tube 3dBi-4dBi 4G LTE Omni Antenna (Vertical Polarization) with an N Male connector.
We recommend sealing the antenna connectors with dielectric grease and self-bonding silicon tape, when installing any outdoor antenna and cabling.
This wide band antenna is well suited for external router/PCB enclosures and other projects and applications.
May be used indoor or outdoor.
Specifications:
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Band width | 262/990MHz |
| Gain | 3/4dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 35° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Male |
| Antenna Radome Material | Fiberglass |
| Mount way | N Male Directly |
| Mechanical | |
| Dimensions | Φ .787 in (20mm) x 7.87 in (200mm) |
| Weight | 108g |
| Operating Temperature | -40℃ to+70℃ |
| Rated wind velocity(m/s) | 60m/s |
| RoHS Compliant | YES |
