Product Details

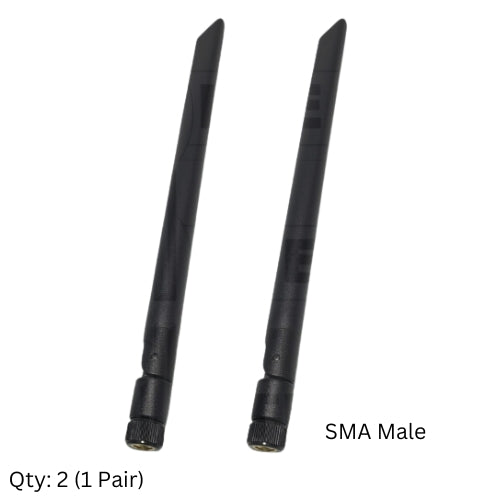

700-3800MHz 5dBi Cellular Hotspot Omni-directional Antennas (Vertical Polarization) with SMA Male Connectors. Sold in pairs (2 antennas).
These are well designed and constructed cellular hotspot omni-antennas. The antennas are wide band and cover the vast majority of LTE and 5GNR frequencies currently utilized by US carriers.
They require no ground-plane, are 7.875in (200mm) in length, and can be used in a straight position or hinged at 45 and 90 degrees.
Designed for indoors use, these are great upgrades to your stock router and hotspot antennas.
Compatible with most 5GNR cellular bands as well as LTE and WiFi
5dBi Cellular Hotspot Omni-directional Antennas
SPECIFICATIONS: |
|
ELECTRICAL: | |
Frequency Range | 698-960/1710-3800MHz |
Band width | 260/460/200MHz |
Gain | 5dBi |
V.S.W.R | ≤1.8 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 50W |
Impedance | 50Ώ |
Connector | SMA Male |
Antenna Radome Material | TPEE |
MECHANICAL: | |
Dimensions | Φ .512in (13mm) x 7.875in (200mm) |
Weight | 21g - per antenna |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
INCLUDES: 2 (pair) x Cellular Hotspot Antennas with SMA Male Connectors
