Product Details

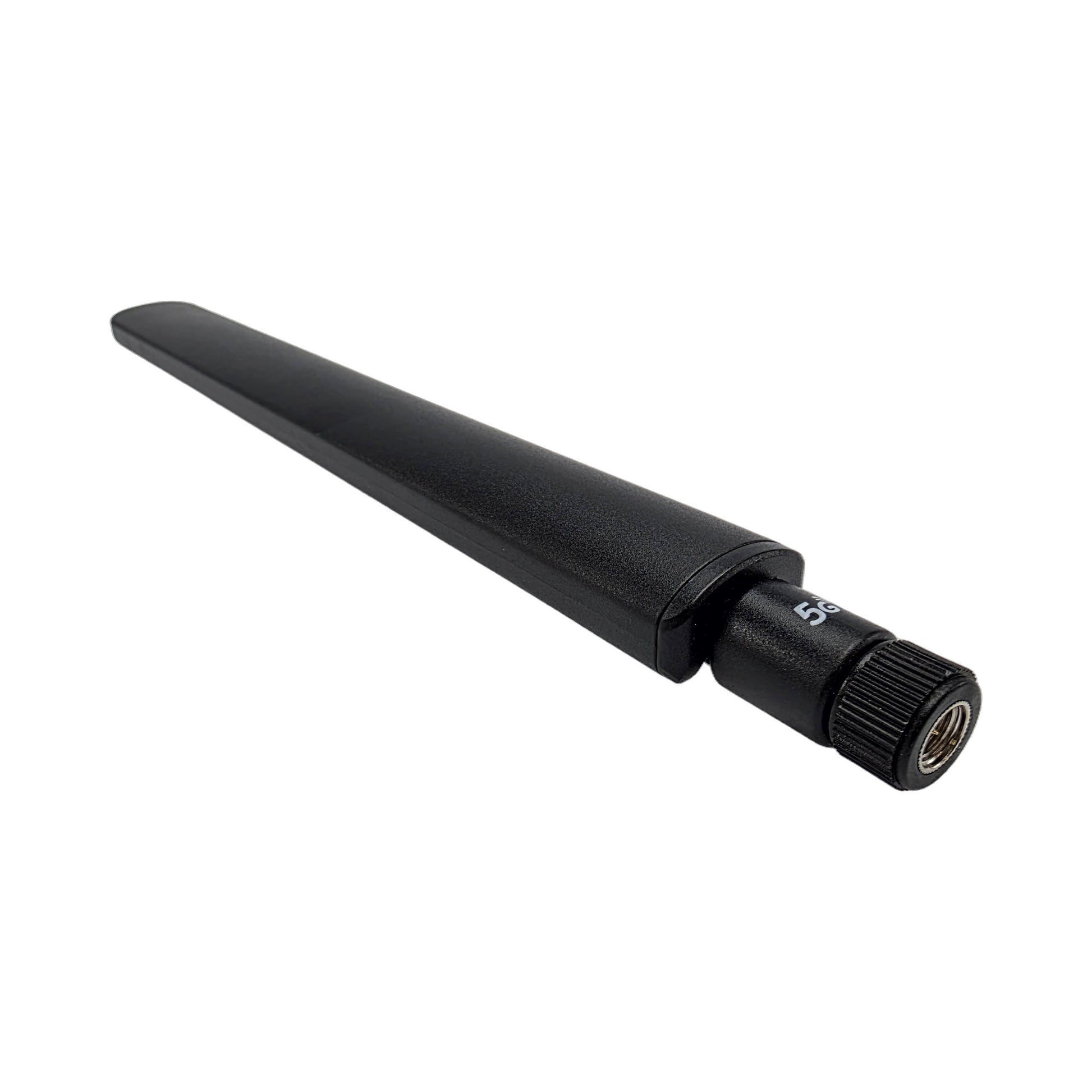

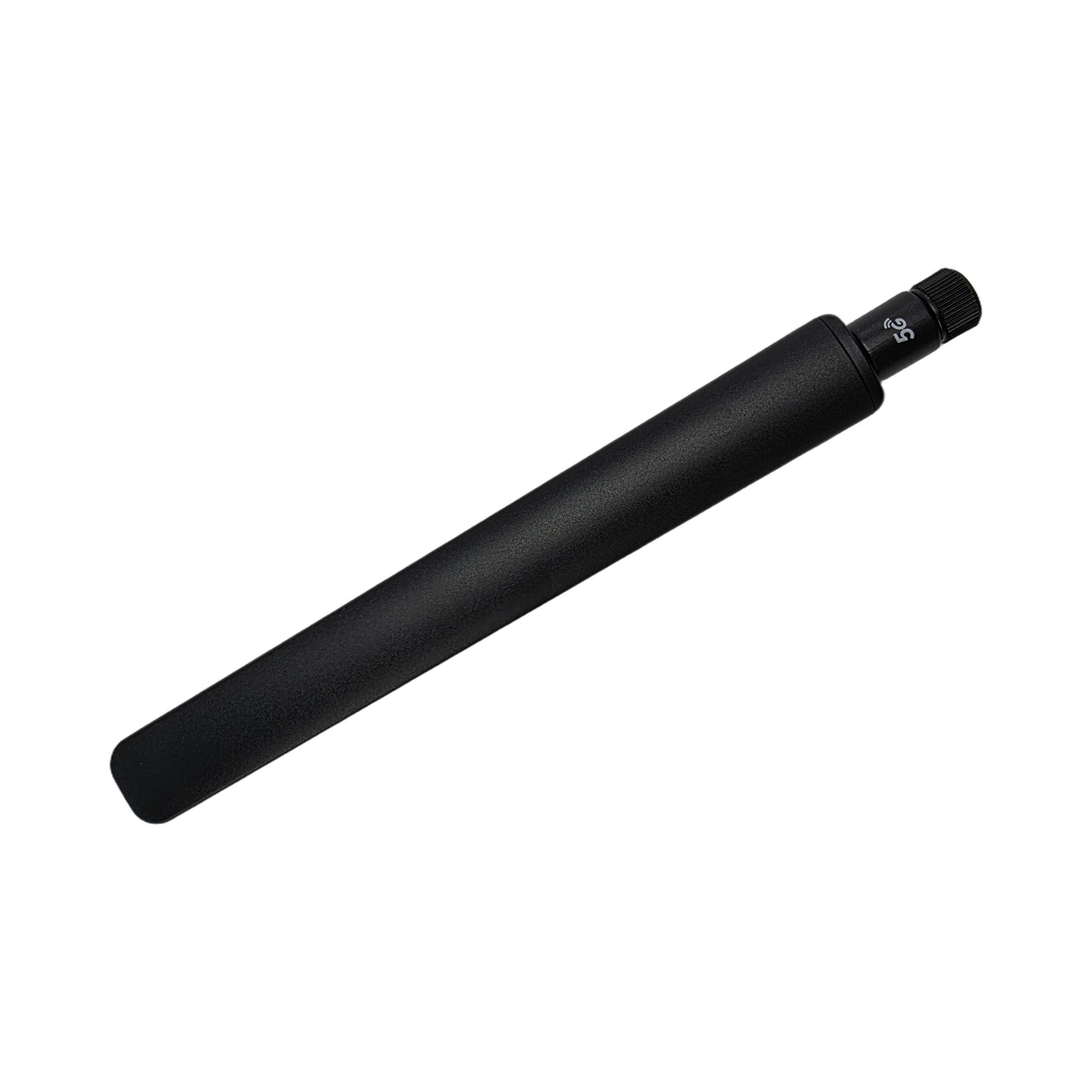

Notice: This item is currently on backorder, if it shows you are able to add to your cart then we allow purchase on this particular item when stock is backordered. If it does not allow it, we do not offer purchase of this item when out of stock on hand. We typically have stock replenishment within days, to usually no more than a week or so, on any item that we allow purchase of on backorder.600-6000MHz 5.5dBi Cellular Hotspot Omni-directional Antennas (Vertical Polarization) with SMA Male Connectors. Sold in pairs (2 antennas).
These are well designed and constructed cellular hotspot omni-antennas. The antennas are wide band and cover the vast majority of LTE and 5GNR frequencies currently utilized by US carriers.

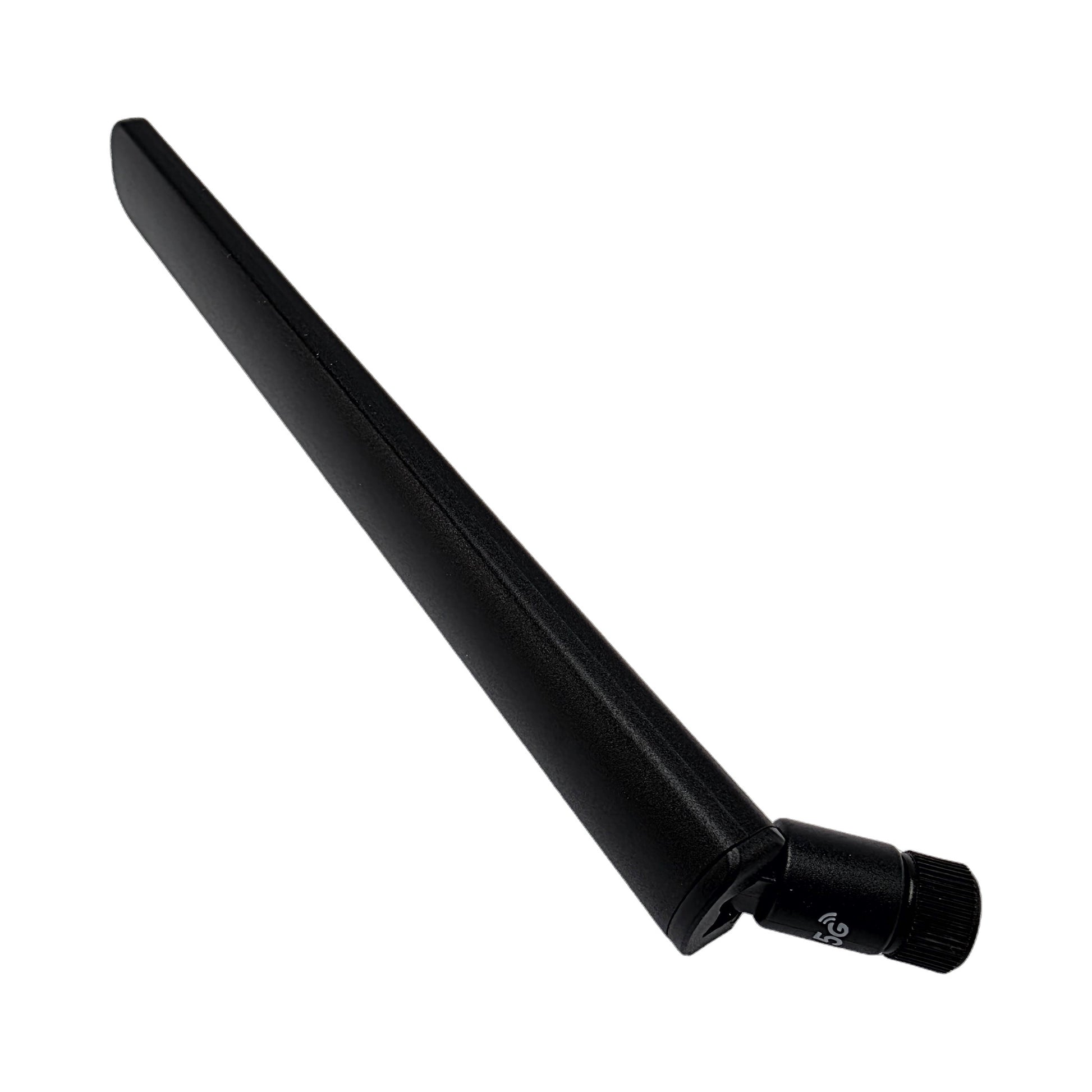

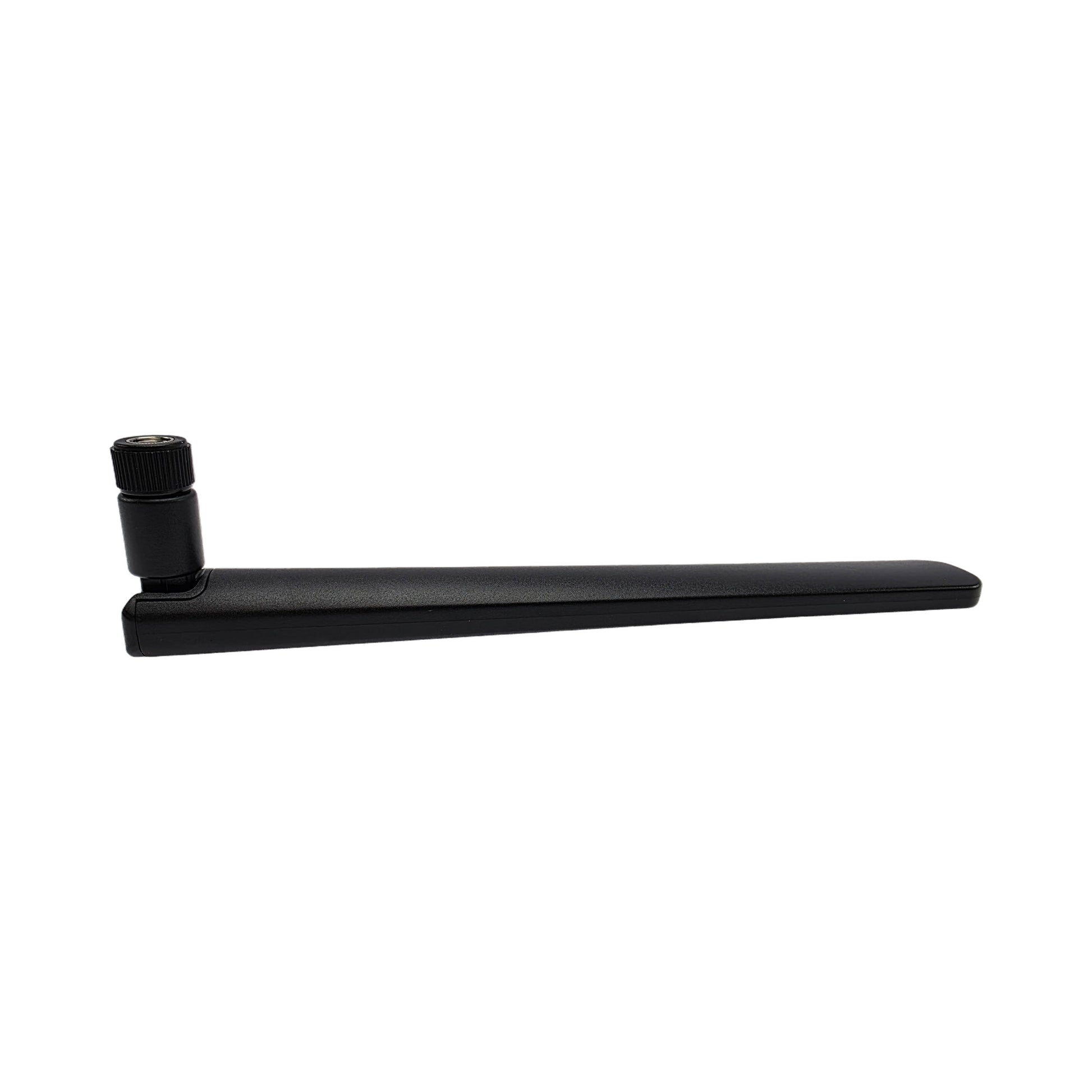

They require no ground-plane, are 6in (152.4mm) in length, and can be used in a straight position or hinged at 45 and 90 degrees.
Designed for indoors use, these are great upgrades to your stock router and hotspot antennas.
Compatible with most 5GNR cellular bands as well as LTE and WiFi
5dBi Cellular Hotspot Omni-directional Antennas
SPECIFICATIONS: |
|
| ELECTRICAL: | |
| Frequency Range | 600-6000MHz |
| Return Loss | < -5.0 |
| Max/Peak Gain | 5.5dBi |
| S.W.R | ≤3.5 |
| Radiation | Omni-Direction |
| Polarization | Linear |
| Maximum Input Power | 25W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| MECHANICAL: | |
| Dimensions (mm) | 152.4 × 21.79 × 14.49 |
| Weight | ~30g - per antenna |
| Operating Temperature | -40℃ to+85℃ |

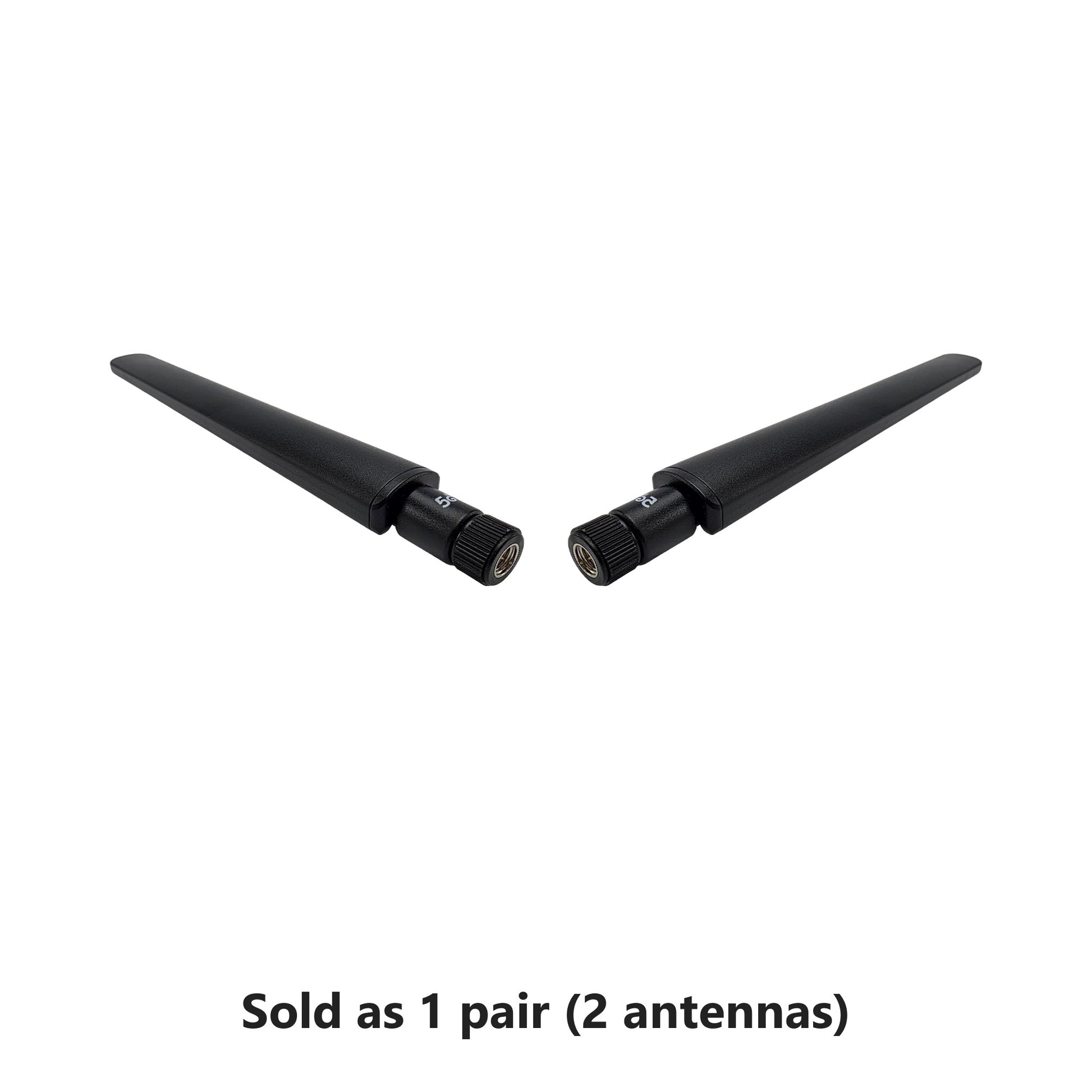

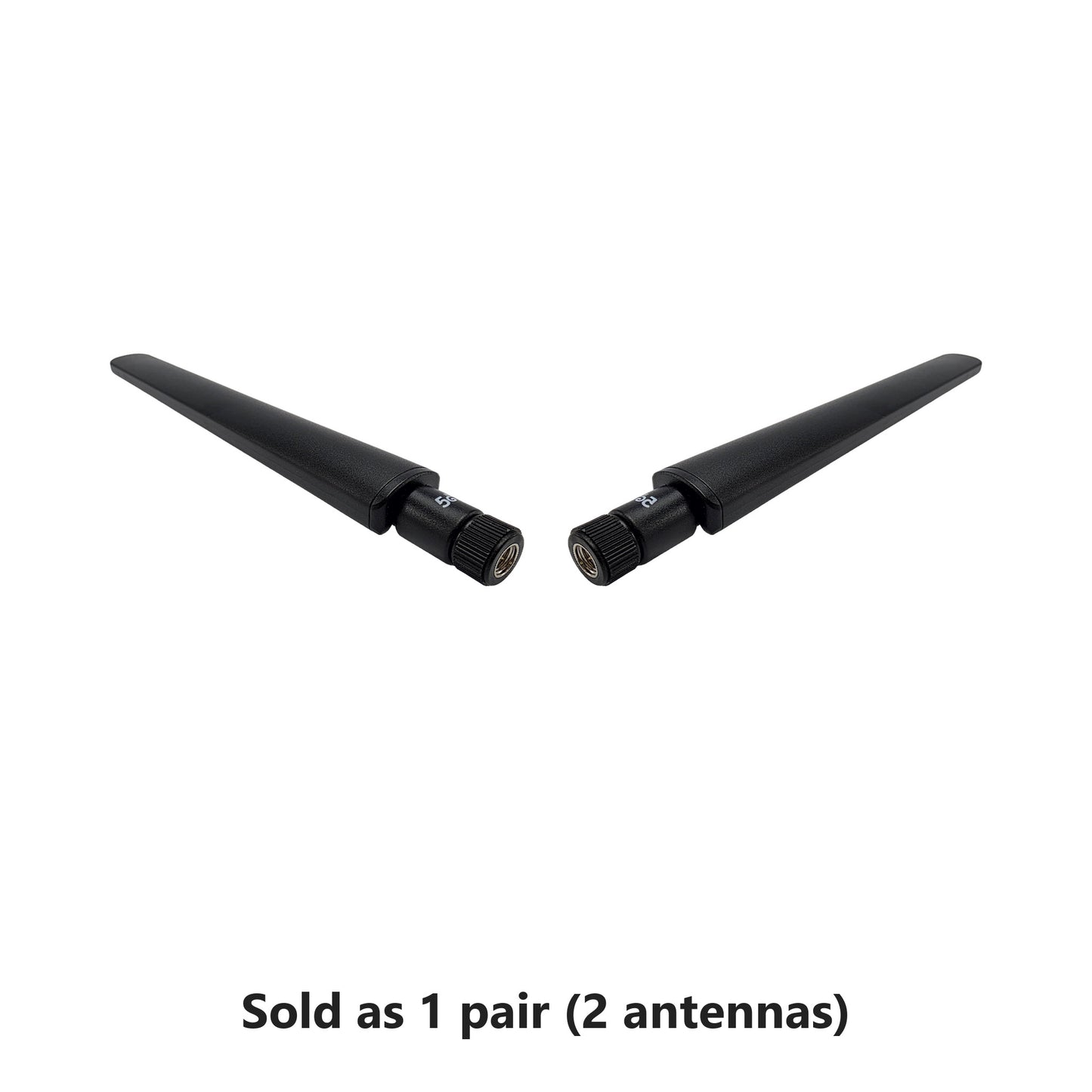

INCLUDES: 2 (pair) x Cellular Hotspot Antennas with SMA Male Connectors
