Amplimax Ultra FAQ
Amplimax Ultra FAQ
Does it work with my T-mobile WiFi calling?
Does it work with my T-mobile WiFi calling?
Yes! With the right settings, which we walk you through, WiFi calling and cameras and more do work when using T-mobile services with the Amplimax Ultra.
What modem is inside?
What modem is inside?
The Elsys Amplimax Ultra is powered by the proven powerful and fast Qualcomm Snapdragon x62 chipset. With real world field tested speeds capable over 1 Gbps.
What bands does the Amplimax Ultra support?
What bands does the Amplimax Ultra support?
Supported 4G bands:
2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 71
Supported 5G Bands
2, 5, 7, 12, 13, 14, 25, 26, 29, 30, 38, 41, 48, 66, 70, 71, 77, 78
What is the antenna gain of theAmplimax Ultras antennas?
What is the antenna gain of theAmplimax Ultras antennas?
How far from a cell tower can you be to still be able to use the Elsys Amplimax Ultra?
How far from a cell tower can you be to still be able to use the Elsys Amplimax Ultra?
The short answer is, with clear line of sight, WELL over 10 miles is possible.
This is a difficult question to answer because cellular connections are not so simple as to say all towers operate the same, and cellular is not a single frequency aimed at your house.
Cell bands range from 600MHz to 6000MHz, not including mmWave signals. Every tower has a variety of bands that cover different frequencies, and may not have a full range of them available or functioning all the time.
The different frequencies travel different distances. 600MHz travels MUCH further and penetrates structures MUCH better than 6000MHz. It scales pretty much in a linear fashion. The higher the frequency, the shorter the distance it can travel at usable power levels.
Add to that, every cell tower around you may not have their cells/sectors antennas aimed at your house. That will make a huge difference in how much a signal will be to useful for you.
Elsys engineering has done field test at distances over 35km, with customer experiences reported at over 50km. ( 21.75 miles to 31 miles )
All in all, if you can get a signal at all, the outdoor antenna system of the Elsys Amplimax Ultra should be able to improve it for more usability.
Does it work with my T-mobile Home Internet? (or business Internet?)
Does it work with my T-mobile Home Internet? (or business Internet?)
Yes it does!
We have a full tutorial section on setting up your particular carrier and plan.
Anytime there is a problem, and we haven't covered it in our extensive support material, we are available to go so far as to walk you through the configurations one on one.
Does it work with my AT&T Internet Air? (Home or business?)
Does it work with my AT&T Internet Air? (Home or business?)
Yes it does!
We have a full tutorial section on setting up your particular carrier and plan.
Anytime there is a problem, and we haven't covered it in our extensive support material, we are available to go so far as to walk you through the configurations one on one.
Does it work with my Verizon Home Internet? (or Business internet?)
Does it work with my Verizon Home Internet? (or Business internet?)
Yes it does!
You will, though, need to ensure your particular unit provided by Verizon has a physical SIM card inside. The Elsys does not currently support the use of eSIM.
Without a physical SIM that is pre-activated, you will not be able to use Verizon service in the Amplimax Ultra.
We have a full tutorial section on setting up your particular carrier and plan.
Anytime there is a problem, and we haven't covered it in our extensive support material, we are available to go so far as to walk you through the configurations one on one.
Does the Amplimax Ultra support eSIM?
Does the Amplimax Ultra support eSIM?
Not at this time.
Does the Amplimax Ultra work with "Other" types of data plans?
Does the Amplimax Ultra work with "Other" types of data plans?
Yes, with the right settings it can be used with a variety of plans.
Does the Amplimax Ultra work outside of the United States?
Does the Amplimax Ultra work outside of the United States?
Yes, using a "Generic" carrier profile setting and as long as your local data plan and carrier support the below cellular bands, the Amplimax Ultra can work where you are.
Note: There is no guarantee that the above is the case, but it should work as long as the cellular 4G and/or 5G bands are used on your towers. You will also need to know the proper APN setting as well as have an already activated data SIM card.
Supported 4G bands:
2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 71
Supported 5G Bands
2, 5, 7, 12, 13, 14, 25, 26, 29, 30, 38, 41, 48, 66, 70, 71, 77, 78
Do I need special drivers to setup my Amplimax Ultra?
Do I need special drivers to setup my Amplimax Ultra?

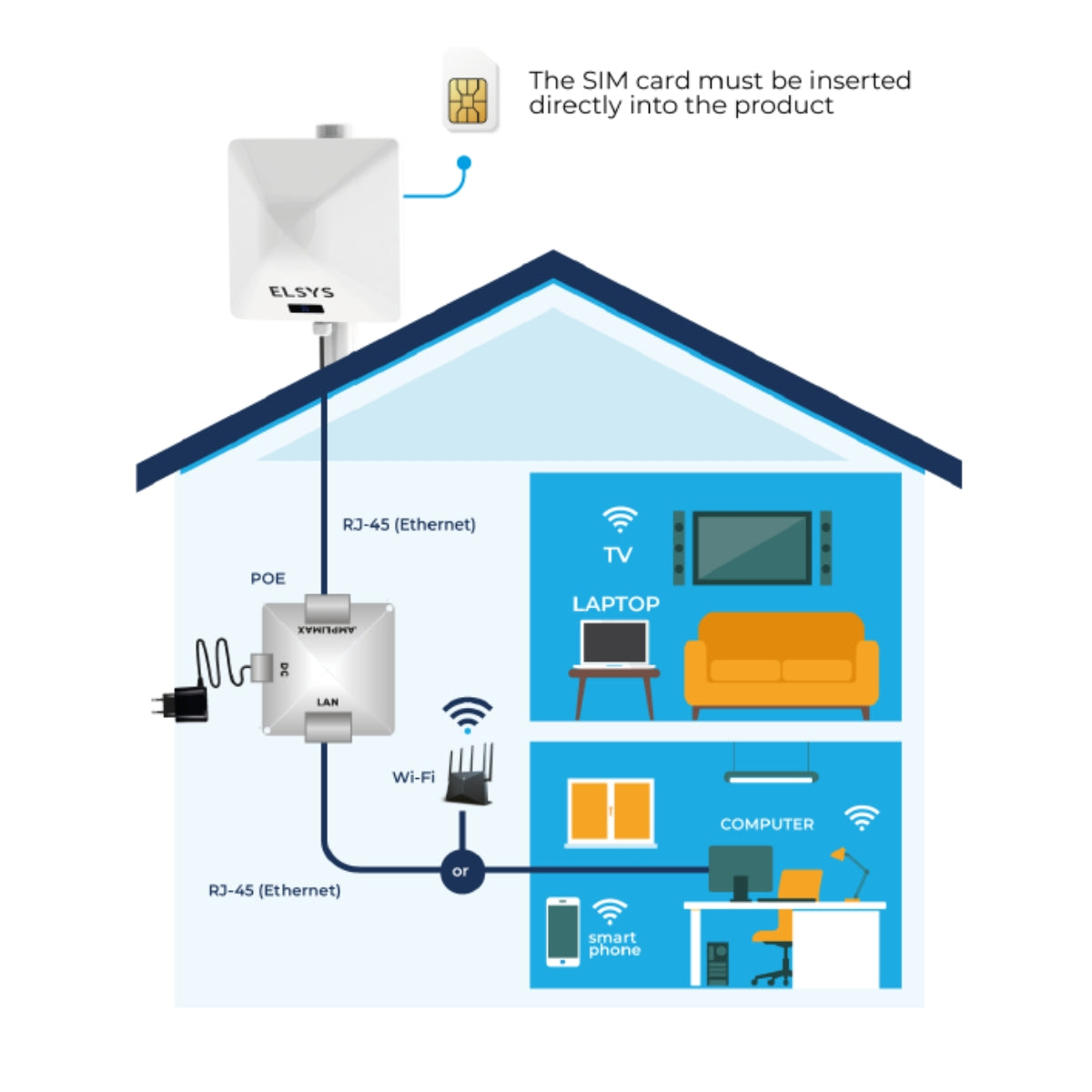

No. You will only need a device, like a computer, that has an Ethernet port (or a USB to Ethernet adapter). You must be able to connect to your Amplimax Ultra via its Ethernet port, there is no other way to setup.
Beyond the physical Ethernet connection, you only need a web browser, and it is recommended that you download the latest firmware update to your device so that you can update it via your web browser and the Amplimax Ultras web interface.
Can I use my own PoE power supply, like from my switch or router?
Can I use my own PoE power supply, like from my switch or router?
Yes. The Amplimax Ultra can be powered with a device other than it's supplied PoE injector, BUT your source must supply 24V PASSIVE PoE power input. It will not accept 48V PoE nor will it accept ACTIVE PoE power input.
What kind of warranty do you offer on the Amplimax Ultra?
What kind of warranty do you offer on the Amplimax Ultra?
Your Amplimax Ultra is supported with a 1 year manufacturers warranty, that we handle with our customers directly. No need to send it to Brazil to fix or replace, we handle it here!
How do I set it up? Do you have instructions in the box?
How do I set it up? Do you have instructions in the box?
The Elsys Amplimax Ultra is an unlocked 4G/5G cellular modem. This is evolving technology. Better than an outdated fold up map of instructions, we have a very very thorough help page offering tons of information and videos to get your Amplimax Ultra up and running, and get you online with solid signal and better control over your connection!
Does the Amplimax Ultra have a bridge mode or IP Pasthrough?
Does the Amplimax Ultra have a bridge mode or IP Pasthrough?
Yes, the Amplimax Ultra is a 4G and 5G modem. It does offer the ability to pass the carrier assigned IP through to the connected device, effectively bridging the two ends of the connection as though the modem is not there.
Does bridge mode eliminate cellular "Double NAT"?
Does bridge mode eliminate cellular "Double NAT"?
No, it eliminates TRIPLE NAT: Carrier NAT (CGNAT) + Amplimax Ultra internal NAT + Your routers own NAT. 3 different NATs for your traffic to traverse before it reaches the internet at large; or comes back.
NAT at it's simplest means routing or traffic direction function. I asked Google AI to define NAT for me in simple terms and this is what it output:
"Imagine your house has a big front door that everyone can see, and the street address in the door. That's like a public IP address. But inside your house, you have lots of little doors to different rooms. Those are like private IP addresses.
NAT is like a friendly doorman who stands at the big front door. When someone knocks on the big door, the doorman knows which little door inside the house to send them to. So, even though there's only one big door, lots of people can come and go through different little doors inside.
That's how NAT works on the internet. It helps lots of devices use just one public IP address to connect to the internet."
CGNAT is the one that confuses a LOT of people. Consider the carrier network to be a like a huge private network that does NOT generally assign you a publicly accessible IP address (it sometimes happens on some carriers, but this is not reliable unless you pay them for a public IP). Instead the carrier network will assign you one if it's privately owned IPs, just like your home router assigns your computer it's own IP address from your routers IP pool (think 192.168.1.x etc). This means that even though you have your home router, they are running your traffic through their router as well, before it hits the internet on THEIR public IPs. These public IPs are being used to route your traffic along with THOUSANDS of other customers; on the exact same IPs. This is why you may have seen a huge spike in those "prove your not a robot" challenges on website logins, after you moved to cellular internet.
So now you have your CGNAT, and you have your carrier supplied gateway modem/routers NAT. That's double NAT. If you added your own router to the mix, like a TP-Link, Ubiquity, Netgear, ASUS, etc, then you added a 3rd NAT,for Triple NAT. Replacing the carrier gateway with an Amplimax Ultra, doesn't eliminate a NAT, it takes the place of one.
If you put the Amplimax Ultra in "bridge mode" then you DO eliminate it's own NAT, but it doesn't magically also eliminate your home routers NAT or the carriers CGNAT, so you still have double NAT.
Can I use my own Ethernet cables?
Can I use my own Ethernet cables?
Yes, just ensure the cable that goes outside is an outdoor rated Ethernet cable, and that you do not go over approximately 150 feet in total length, due to the PoE voltage of 24V.
can I send AT commands to the Amplimax Ultras modem?
can I send AT commands to the Amplimax Ultras modem?
Yes, there is a built in AT command page for this purpose
I use a special APN for my SIM card (Static IP, etc) can I setup a custom setting like that?
I use a special APN for my SIM card (Static IP, etc) can I setup a custom setting like that?
Yes, and we offer and exhaustive list of APNs for use with many carriers and plan types.
Can I set the MTU on the Amplimax Ultra?
Can I set the MTU on the Amplimax Ultra?
No. You'll have to set that on your router or device.
I might want to check the IMEI of the Amplimax Ultra, and ensure it's correct for my SIM/account/plan. Can I do that?
I might want to check the IMEI of the Amplimax Ultra, and ensure it's correct for my SIM/account/plan. Can I do that?
The Amplimax Ultra allows access to AT commands that will allow the functionality you require.
This is not legal in some countries outside of the United States. If you are not in the US, please check with your local regulations on this topic.
Can I set/change the Amplimax Ultras TTL or HL?
Can I set/change the Amplimax Ultras TTL or HL?
Yes, to whatever number you need.
Does T-mobile offer a plan that works plug and play with the Amplimax Ultra?
Does T-mobile offer a plan that works plug and play with the Amplimax Ultra?
Yes. They have to use their order code: ZUNLINT
It is called their "Bring Your Own Device" plan. Do not let them tell you it doesn't exist anymore, it does.
Do not let them tell you you have to have a specific IMEI, they don't need it and they can use any IMEI they want to register it.
If you get a rep that doesn't let you get it or does not know how to get it. Try another rep.
Also, you may want to have them add the SOCL: ZFLTROFFB
This will remove an inherent filter for business lines that blocks some streaming sites and content.
The Amplimax IP is 192.168.10.254, but I already use 192.168.10.x in my network, can it be changed?
The Amplimax IP is 192.168.10.254, but I already use 192.168.10.x in my network, can it be changed?
Yes, you can change the IP and IP range of teh Amplimax Ultra as required.
Can I push a button and factory reset my Amplimax Ultra?
Can I push a button and factory reset my Amplimax Ultra?
Yes! If you have forgotten the administrator login, or have any other reasons to use a physical means to factory reset the Amplimax Ultra, this can be done.
Is Elsys making an x75 version soon?
Is Elsys making an x75 version soon?
Elsys has made no announcements for any planned new version anytime soon.
I'm an advanced user and understand the risks, can I do more than just use the web interface?
I'm an advanced user and understand the risks, can I do more than just use the web interface?

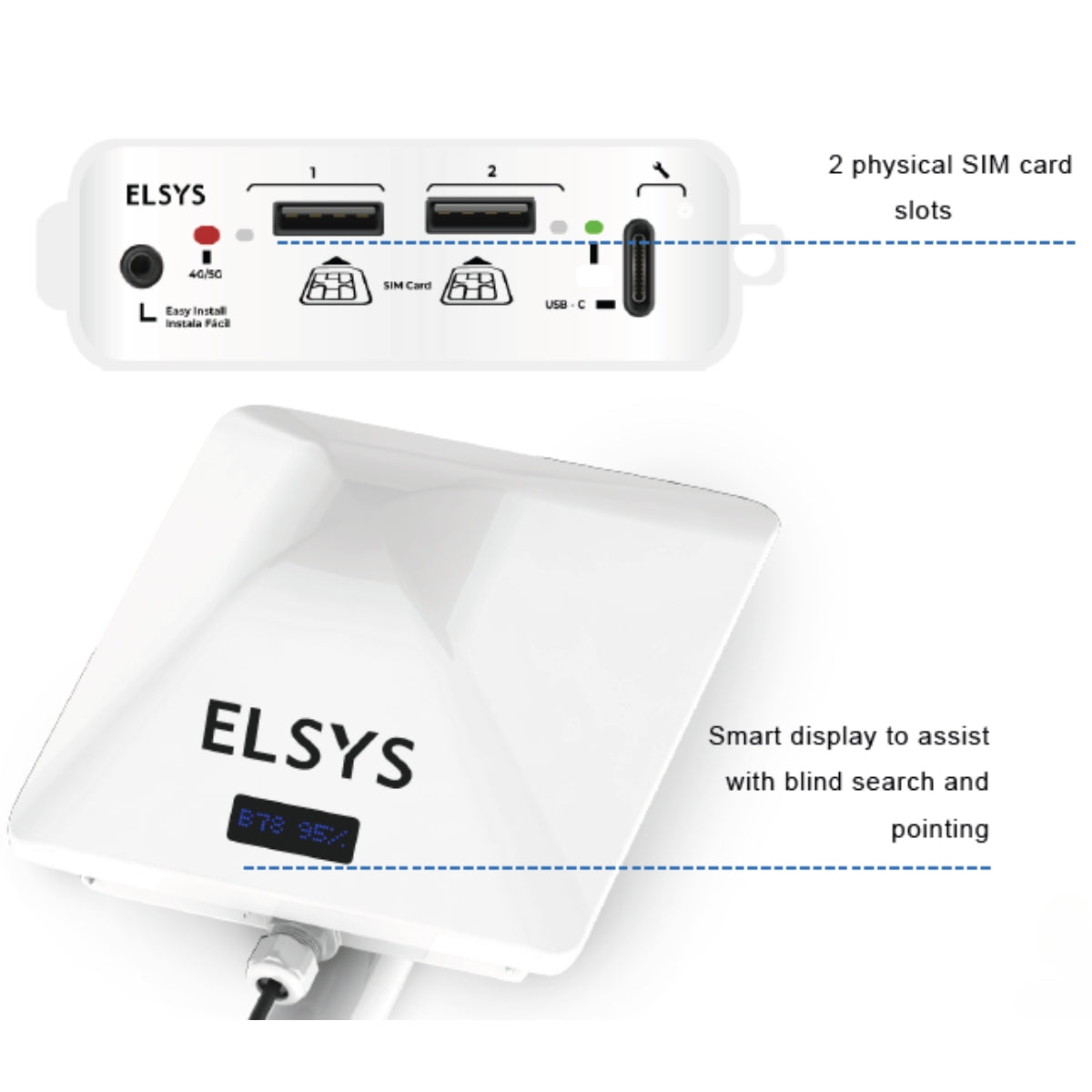

Yes. The Amplimax Ultra does have a serial com port that you can access via it's USB-C port on the bottom of the unit.
Product Details
In addition, network latency is much lower, with amazing response times. For these reasons, the technology comes to revolutionize the Fixed Wireless Access (FWA) market and Elsys is a pioneer and protagonist in the market.
NOTICE: The AX3000 wifi router from the documentation is NOT included in this US version.
NOTICE: This device has eSIM capability, but it is currently not enabled or usable. The plan to integrate its' use is planned, but again not currently active.
At times we have refurbished units available here: https://store.thewirelesshaven.com/products/elsys-amplimax-ultra-refurbished
The Elsys Amplimax from WirelessHaven and Richards customer service are next level!! Richard's knowledge and support are great. Would recommend WirelessHaven for all your cellular needs! Had a few items pop up with the SIM for the Elsys Amplimax and Richard was there every step of the way to help me out. He went above and beyond. Have not fine tuned the Elsys Amplimax due to the cold outdoor temps, without it we went from 28mbps up and 5mbps down to 125mbps up and 28mbps up, cant wait to fine tune it! Thanks again to Richard!
So I had had enough of the stupid high cost and crappy service of Optimum which is the only wired internet service at my location. Signed up for T-Mo home internet and the speeds / signal was pretty bad even though T-Mo says their service is available at my house. Did some further research and came across Richard's videos on YouTube and decided to try out the Amplimax. Did the IEMI "reprogramming," popped in the T-Mo sim and pointed the Amplimax at what I thought would be the stronger tower since it was closer. Speeds ok but it would have been a tough spot to mount outside my house. Decided to try the slightly further away tower and that seemed to have the same signal strength of 88-92% but was a much easier mounting location for me. Got it mounted. Ran a flat ethernet cable which allowed me to get it inside the house through an egress window in the basement without need to drill a hole for regular ethernet.
Now the fun part was experimenting with which bands to enable/disable. Spent maybe an hour or two screwing around with this and determined the best / most reliable for me was N71 (600mHZ) for 5G and then a few LTE bands. The key here is disabling the other 5G bands made the connection fully reliable for me. Don't read this and then assume the same is for you. My speeds are ~ 200 down and ~ 40 up. Worse than Optimum but again super reliable which is more than I can say for them. Been up and running now 5 months and haven't lost signal once (knock on wood).
I did have an issue with RE-connecting to my Google Wifi router following a power outtage. Solution was to buy a UPS that both the Amplimax POE and Google Wifi are plugged into. Zero downtime = zero resets = zero problem.
Lastly, and probably most importantly, Richard was great. He convinced me to try the further / better tower and gave guidance on optimizing which bands to start tinkering with disabling. I can't say enough about his customer service. Truly exceptional.
Customer for life....

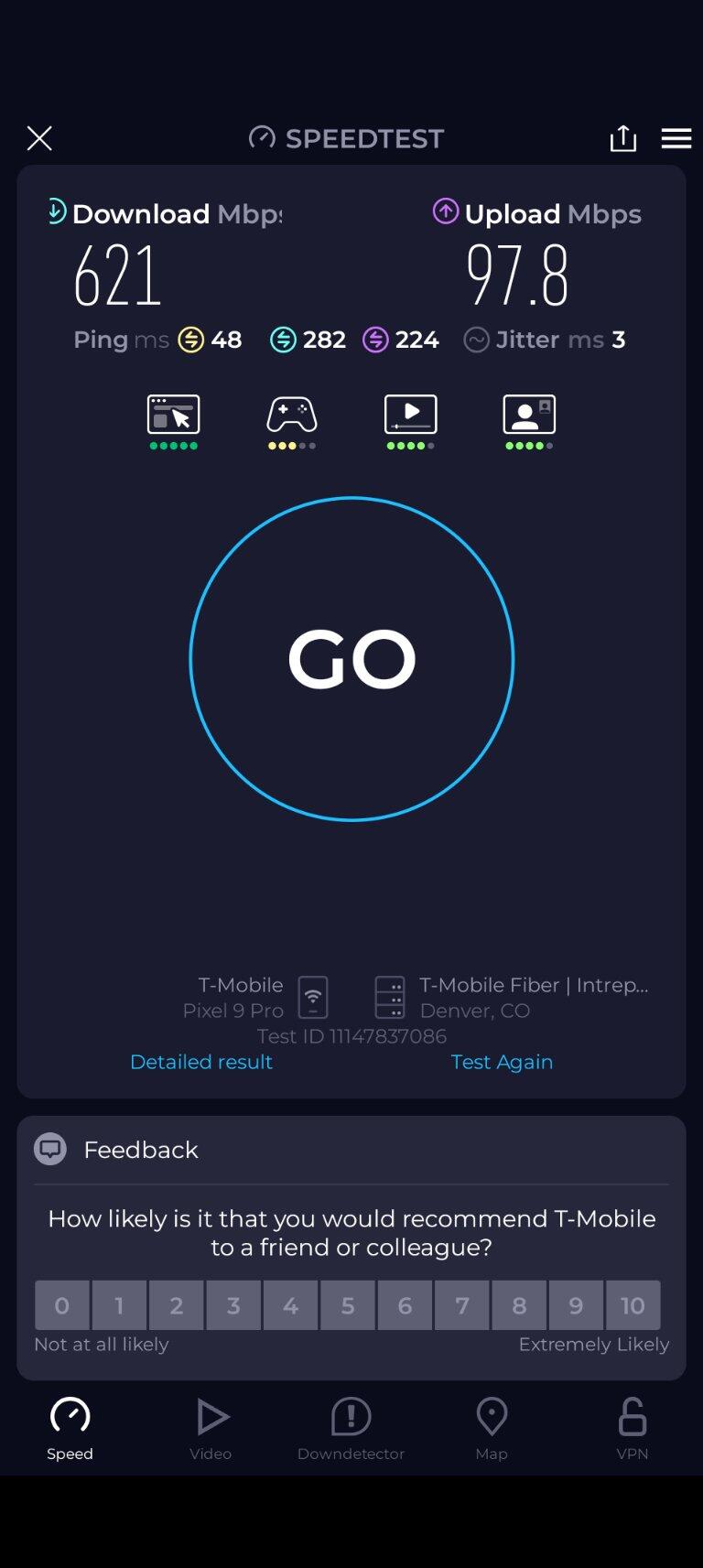

I can't praise the Elsys Amplimax Ultra enough. My speeds prior to installing this were about an average of 80mbps down and like 6mpbs up. After installing this unit my speeds average 750+mpbs down and 50mpbs up and that isn't even clearing the full tree line. Once I move it to its permanent location I'm curious if the speeds will get even better. The customer service is insane! Honestly the best customer service I've ever experienced with anything. The first unit I received was having some weird issues so without hesitation a new one was sent and the new one fixed the weird issue I was having. Incredible product and even better customer service! You won't be disappointed.
