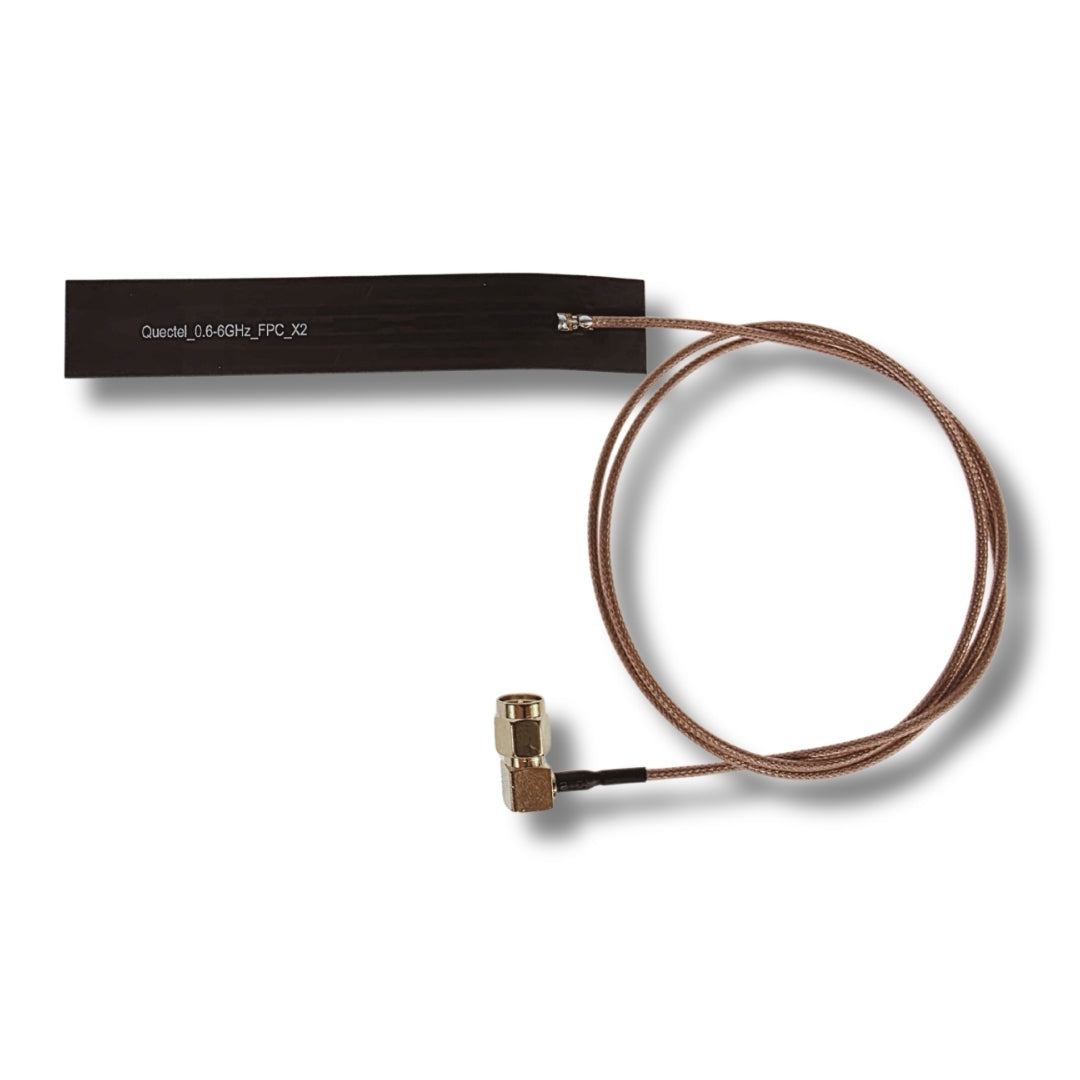

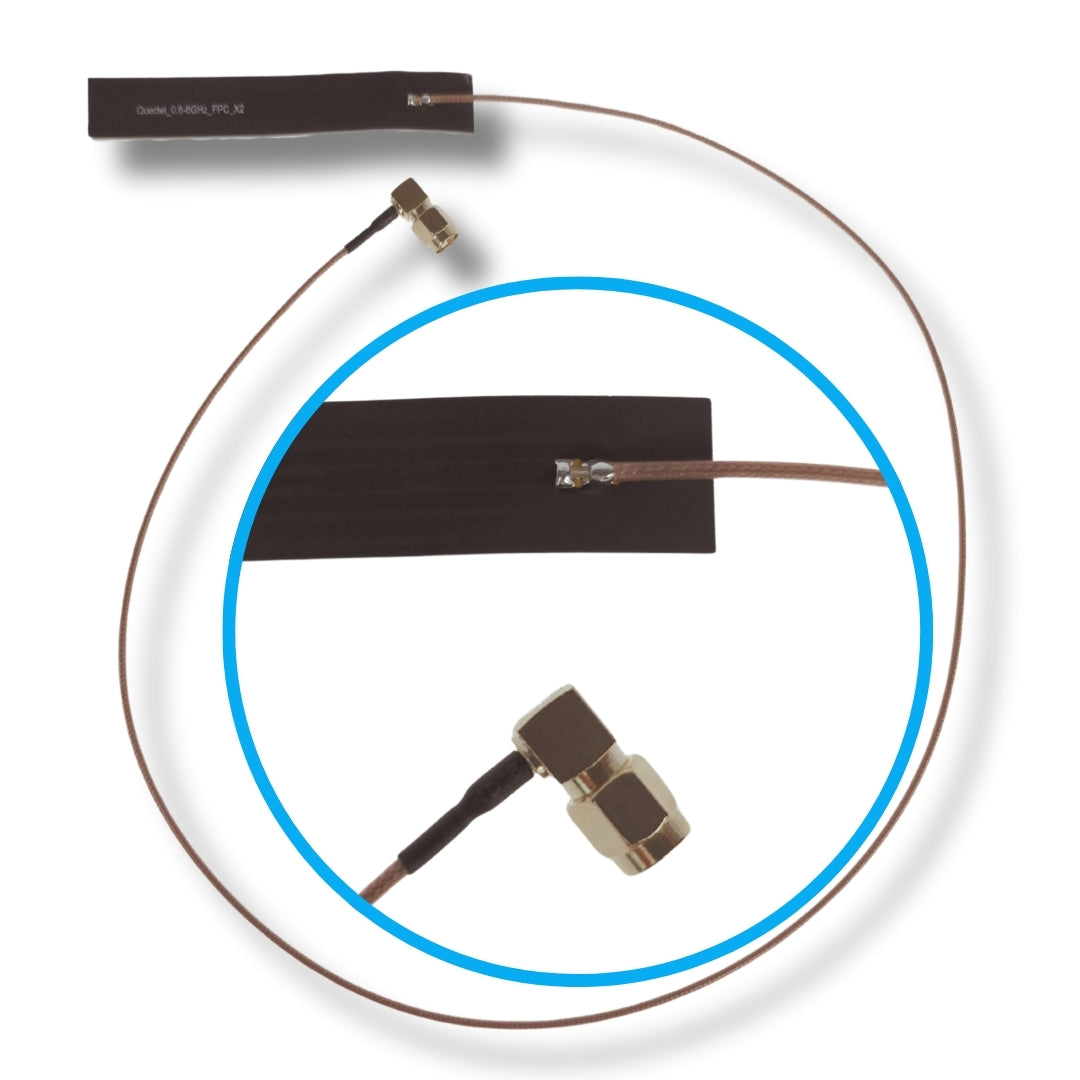

Quectel Sticker Type Omni Antenna | 600-6000MHz 4G 5G 4-5dBi | 24 inch RG178 Cable | SMA Male Right Angle Connector

Quectel Sticker Type Omni Antenna | 600-6000MHz 4G 5G 4-5dBi | 24 inch RG178 Cable | SMA Male Right Angle Connector

SKU:ANTFPC-RG178-24IN-SMARA

Regular price $8.99 USD
Regular price Sale price $8.99 USD
Sale Sold out
Shipping calculated at checkout.

181 in stock

View full details

Product Details

These antennas are perfect for installation in plastic enclosures, and small cases, both indoor and outdoor. They perform very well on all 5GNR and LTE frequency bands.

Rated frequency rage: 600MHz - 6000MHz

Per Quectel, The antenna is designed for superior performance, and can be widely used for wireless applications. Excellent performance, excellent efficiency. These antennas are used when certifying the Quectel modules in FCC testing.

Compatible with all LTE and 5GNR cellular bands as well as LoRaWAN and WiFi

These antennas are custom made by Quectel for us, for a more robust enclosure assembly design with modems and routers that use SMA antenna connectors.

This is a "sticker" style flexible ultra-thin antenna (FPC).

Listing is for a single (1 piece) antenna.

Cable Length: 24 inches
Cable Type: RG178
Connector: SMA Male Right Angle



Picture may vary slightly from the antennas in stock. Same performance and general size.



Specifications:

Electrical
Frequency Range 600-6000MHz
Gain ≤4.6dBi
V.S.W.R ≤3.5
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male Right Angle
Cable Type  1.78 mm
Cable Length 609 mm
Antenna Radome Material Flexible Trace Sticker Style (FPC)
Mounting Adhesive
Mechanical
Antenna Dimensions 90.15mm x 15.2mm x 0.13mm
Weight ≤4g
Operating Temperature -20 °C to +85 °C
Humidity +15-70%RH
RoHS Compliant YES
