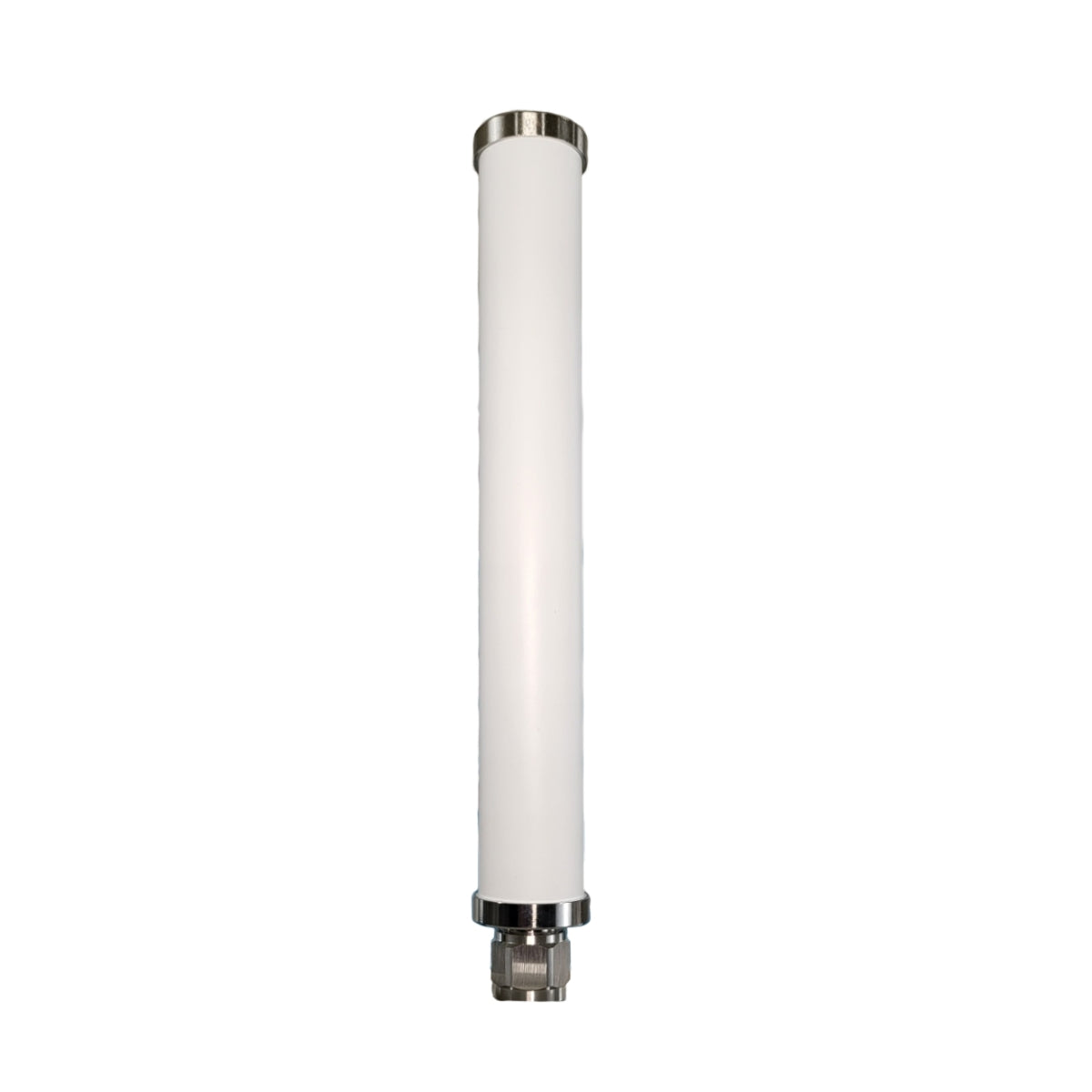

Outdoor Dual Band High Gain WiFi Omni Antenna 2.4GHz-5GHz 6dbi-7dBi N Male
Outdoor Antennas made for access points and router enclosures.
Specifications:
| Type | Dual-band Dipole Omni |
| Frequency | 2400-2500/4700-6000 MHz |
| Max Gain (dBi) | 6.0 / 7.0 |
| Polarization | Vertical , Vertical |
| Beamwidth (2.4GHz) | 360 degrees / 25 degrees +/- 5 degrees |
| Beamwidth (5GHz) | 360 degrees / 25 degrees +/- 5 degrees |
| VSWR | < 1.7 , Max < 2.0 / < 1.7 , Max < 2.0 |
| 3 dB Beamwidth: 18 degrees (5 GHz) | |

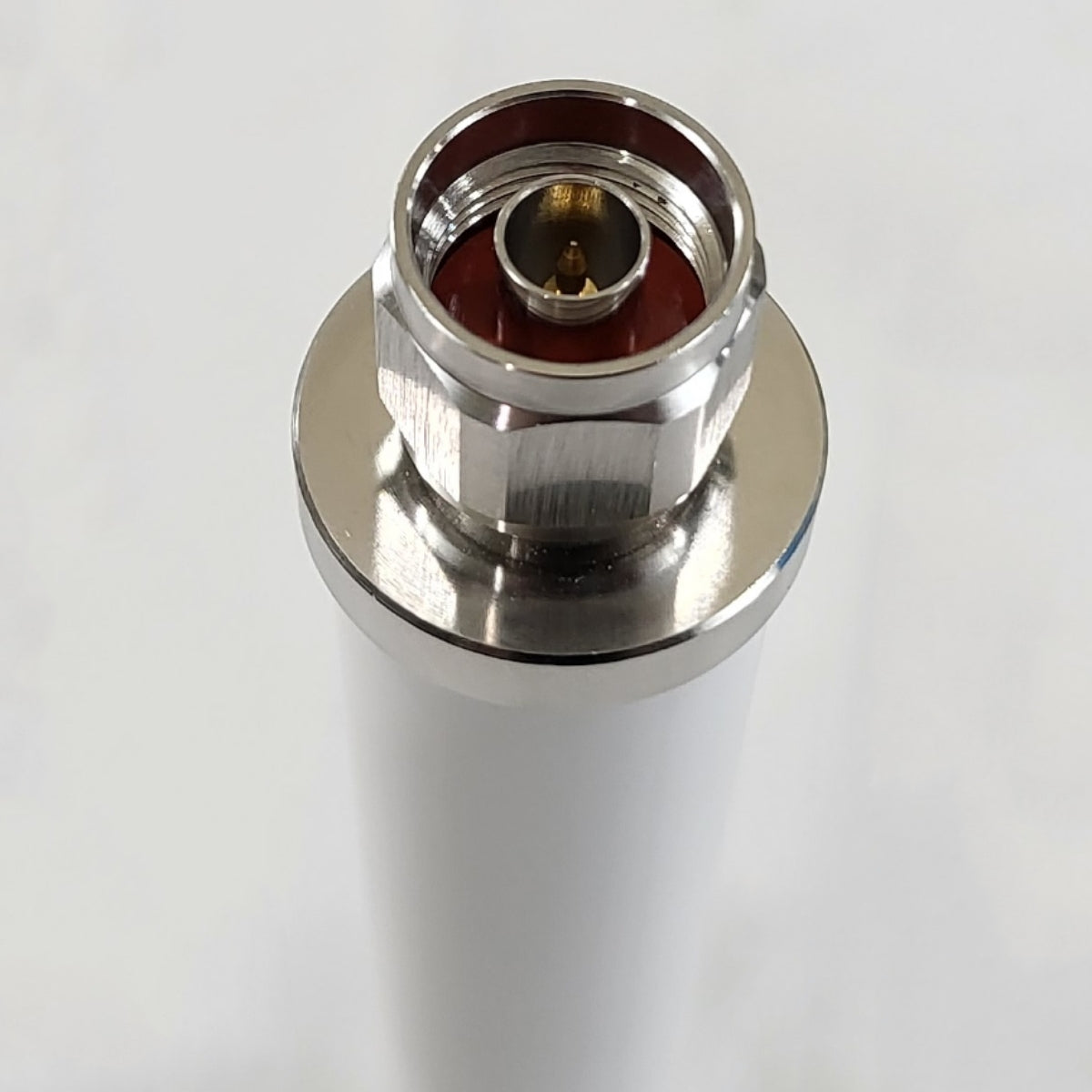

| Connector Type | N-Type Male |
| Impedance | 50 Ohm |
| Max Input Power | 50 W |
| Outdoor Rated | Yes |
| Weight | ~8 oz |
| Material | ABS - UV Resistant |
| Operation Temp Range | (C) -40 / +80 --- (F) -40 / +176 |
Dimensions: 1.18" DIA x 8.66" Length
IP67 Rated
