Product Details

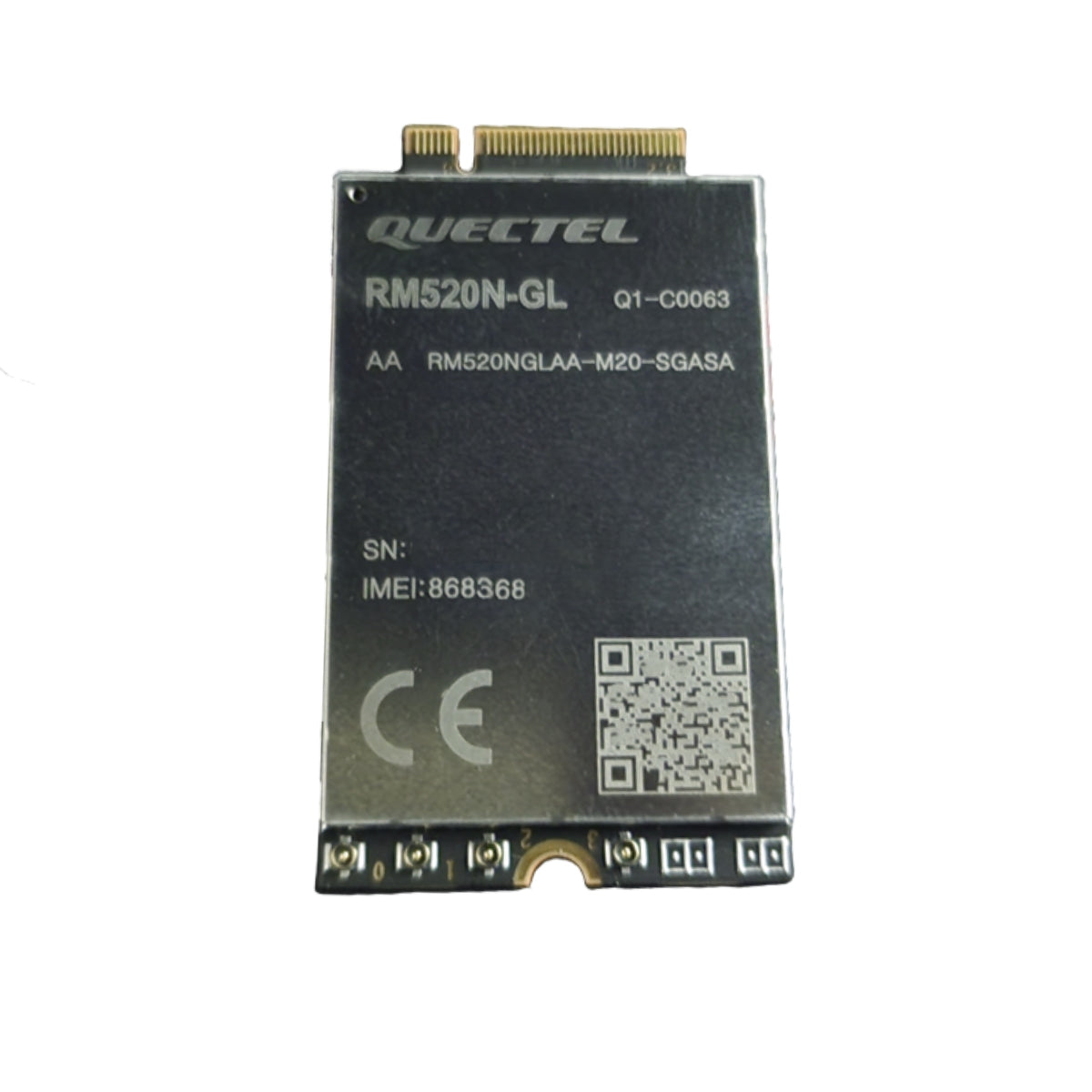

Wireless Internet Modem - 5G - x62 Qualcomm - Quectel RM520N-GL
Top Speed: (LTE/5GSA/5GNSA)
Downlink: 1.6Gbps/2.4Gbps/3.4Gbps
Uplink: 200Mbps/900Mbps/550Mbps
5G SA Bands Supported
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G NSA Bands Supported
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
All LTE Bands Supported
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 43, 46, 48, 66, 71
Carrier Aggregation Support?
Yes
Cellular Antenna Ports:
4 (4x4 MIMO)
**Check for full cellular band support on the bands tab above.
NOTE: It is the customers sole responsibility to ensure that the cellular service is compatible with the above cellular modem. The Wireless Haven is not responsible, and will not rake returns, if the customer cannot find a cellular data plan to connect their modem to.
