Product Details

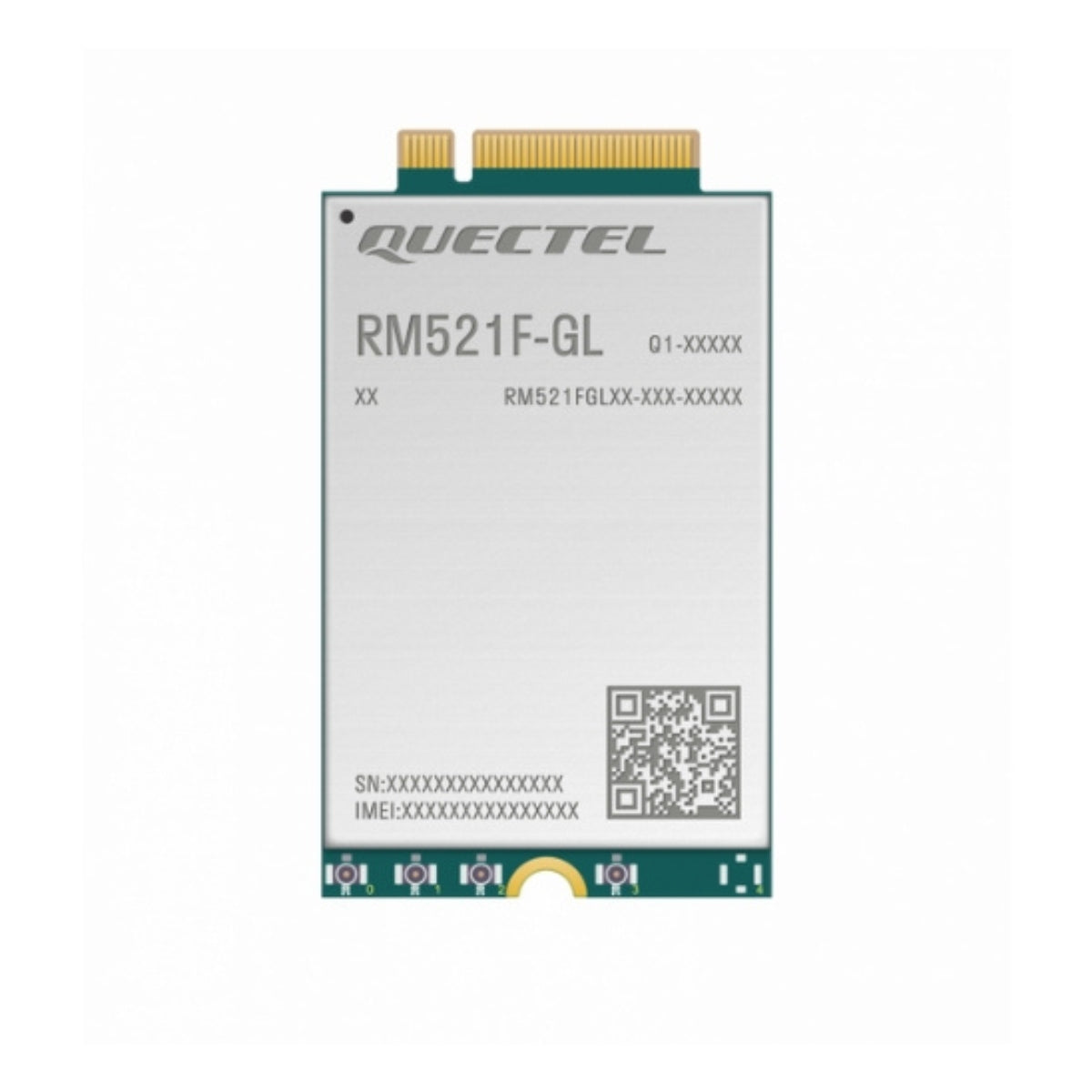

Wireless Internet Modem - 5G - x65 Qualcomm - Quectel RM521F-GL
Top Speed: (LTE/5GSA&NSA)
Downlink: 2Gbps/4Gbps
Uplink: 200Mbps/900 & 550Mbps(NSA)
5G SA Bands Supported
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G NSA Bands Supported
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
All LTE Bands Supported
1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 43, 46, 48, 66, 71
Carrier Aggregation Support?
Yes
Cellular Antenna Ports:
4 (4x4 MIMO)
**Check for full cellular band support on the bands tab above.
NOTE:It is the customers sole responsibility to ensure that the cellular service is compatible with the above cellular modem. The Wireless Haven is not responsible, and will not rake returns, if the customer cannot find a cellular data plan to connect their modem to.
NOTE: These are Engineering Samples They are the only version made currently, and are not yet FCC approved for general use in the US. Testing only. As of 03-13-2024 Quectel does not make the RM521F-GL in n FCC approved nor non-engineering sample version.
