Signal Brick 700-2700MHz WiFi Cellular 4dBi Omni-Directional 2x2 MIMO Antenna (± 45°) RJ45 Connector

Signal Brick 700-2700MHz WiFi Cellular 4dBi Omni-Directional 2x2 MIMO Antenna (± 45°) RJ45 Connector

Regular price $109.00 USD
Regular price $139.00 USD Sale price $109.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

WiFiX AO 1OA727V4 RJ is a Cellular MIMO 2x2 4dBi omni-directional antenna with an RJ45 cable connector bulkhead

The AO 1OA727V4 RJ Cellular 4dBi MIMO antenna is a wide band omni-directional antenna engineered to improve signal strength and reception over a wide range of frequencies and applications.
It is ideal for RVs, campers, over the road truckers, and remote locations with hard to determine signal direction. Ideal locations can be rural, suburban, urban and other locations where the mobile signal is poor or less than desirable, or where a better signal is required to take advantage of carrier aggregation.

Our wide range design allows the antenna to be carrier neutral, covering the 700/800/850/1700/1800/1900/2100/2300/2500/2600/2700 frequencies.  Its aesthetic appearance accommodate installations at most any location, even for high demanding applications and customers.

The antenna component and circuitry are integrated within a top quality outdoor weatherproof enclosure system. (6.3" x 6.3" x 9.45")


The AO 1OA727V4 RJ provides an internal enclosure for installing small router pcbs, hotspots and/or a wifi access point.  It is especially suited for PoE applications by installing its RJ45 waterproof IP67 cable gland/jack (included) in the single cutout hole.  3M adhesive standoff mounts (boss/stands) are included to secure an internal router or PCB in place.


Example installation with our NEXQ6GO router PC board and our 48V to 12V POE Splitter inside:


The enclosure is equipped with locations where additional holes may be drilled to install another bulkhead connector or external SIM extension gland.


The system includes 2 x U.FL pigtails mounted directly to the antenna’s backing plate.  This allows a Mini PCI-E modem (i.e., Quectel EP06-A) to connect directly to the antenna components.

Adhesive PCB Feet are included for PC Board installation inside the enclosure, as well as an ip67 rated RJ45 connector bulkhead.

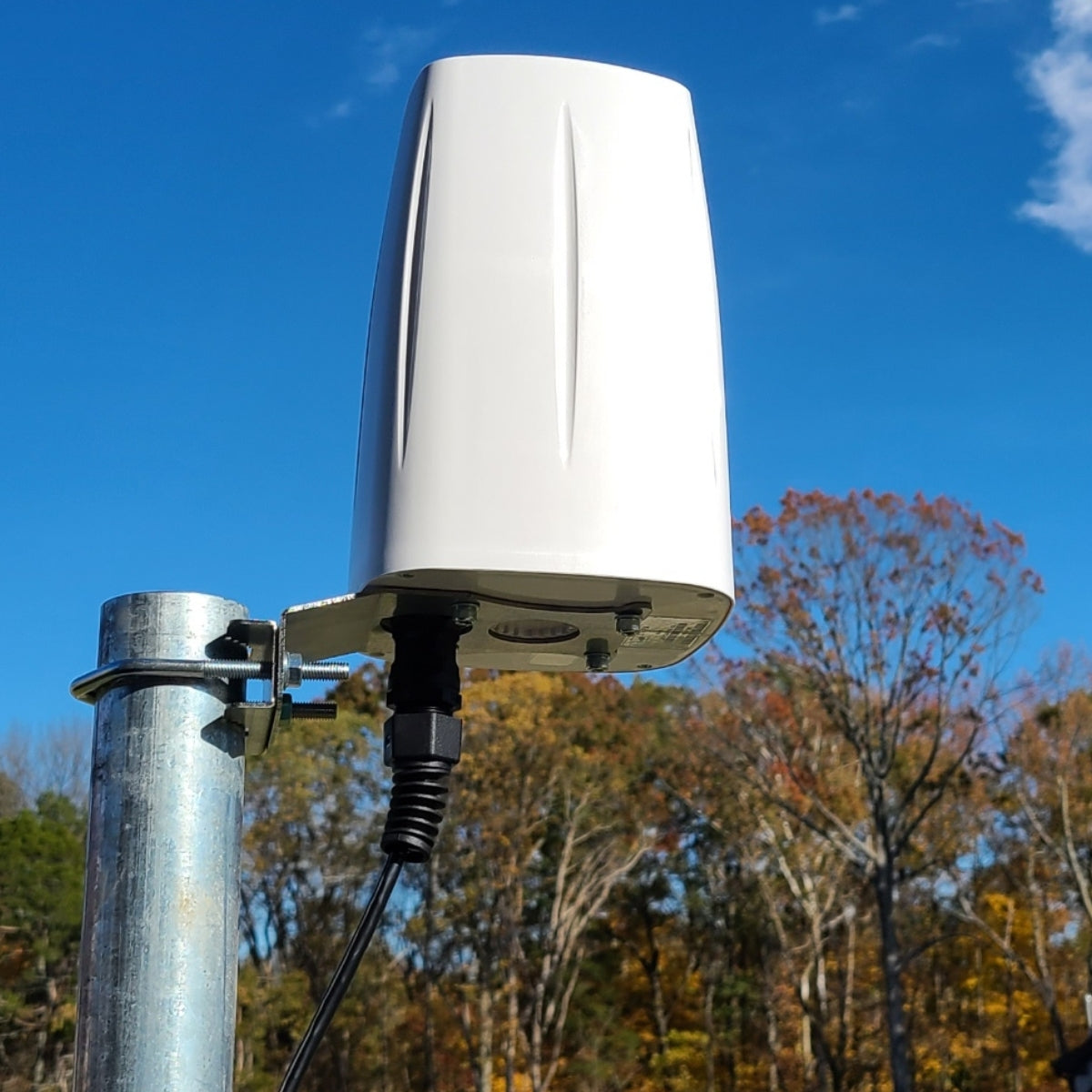

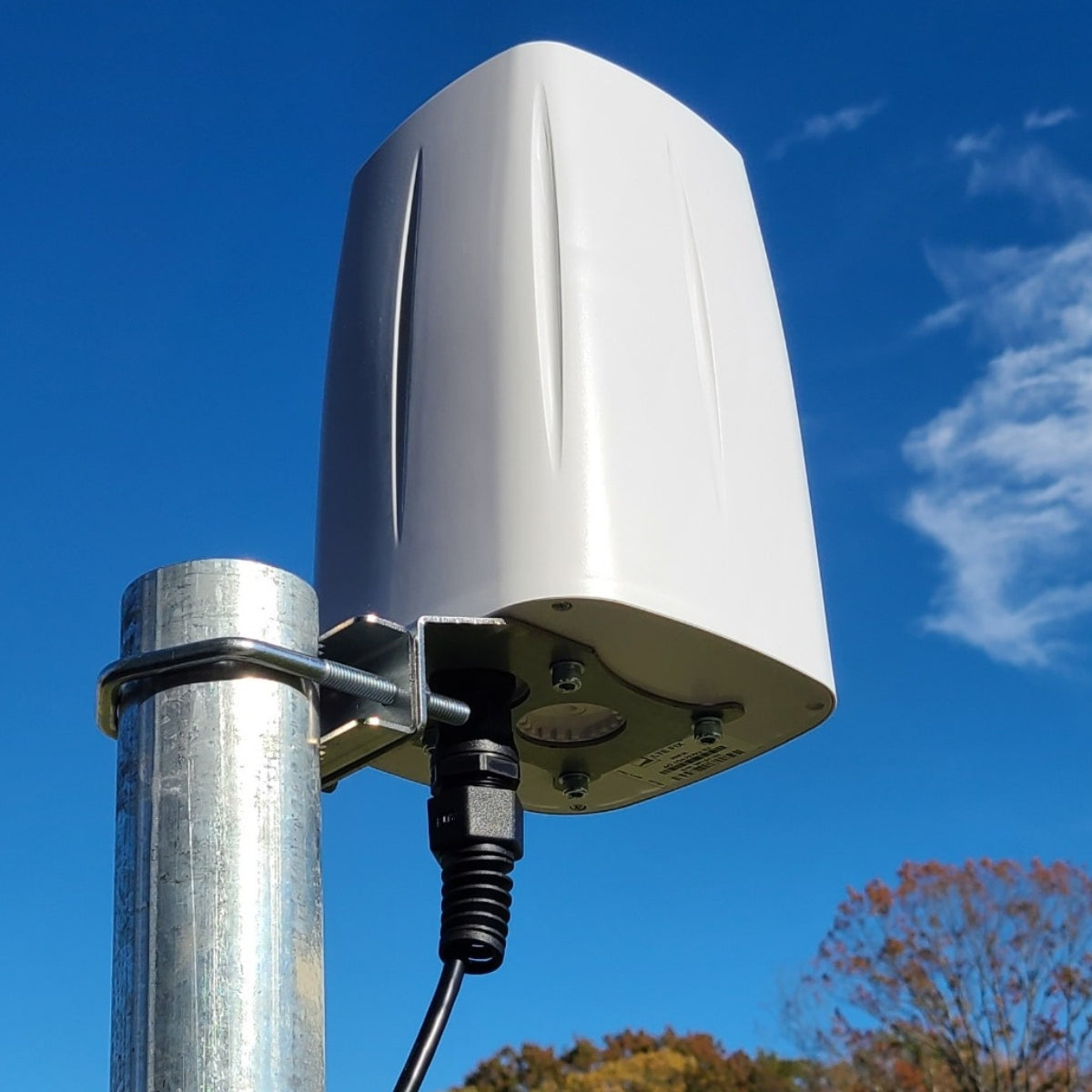

The WiFix AO 1OA727V4 RJ is suitable for indoor and outdoor (IP67) installations, both wall and pole mask mounting.


WiFix systems are engineered of UV resistant ABS plastic material that is resistant to extreme weather conditions like rain, snow and humidity. They can safely operate in temperatures ranging from -40°C up to 80°C.  WiFix designed sealing systems guarantees a waterproofed level of IP67.
