Product Details
The WiFiX Pike 650-2700MHz is the largest omni-directional antenna that we carry. Boasting a gain rating scaled with its size at a max of 9dBi gain.
Built with a strong fiberglass casing and sealed ends, this antenna is perfect for RV, Marine, Urban and Rural installations. Gathering signal from all directions, optimal for areas where aiming isn't possible or where mobility is needed. Full 5GNR and 4G LTE support.
Supports - 3G / 4G / 5GNR - Bands: 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 11 / 12 / 13 / 14 / 17/ 18 / 19 / 20 / 21 / 25 / 26 / 28 / 29 / 30 / 32 / 34 / 38 / 39 / 40 / 41 / 66 / 70 / 71 / 74 / 75 / 76

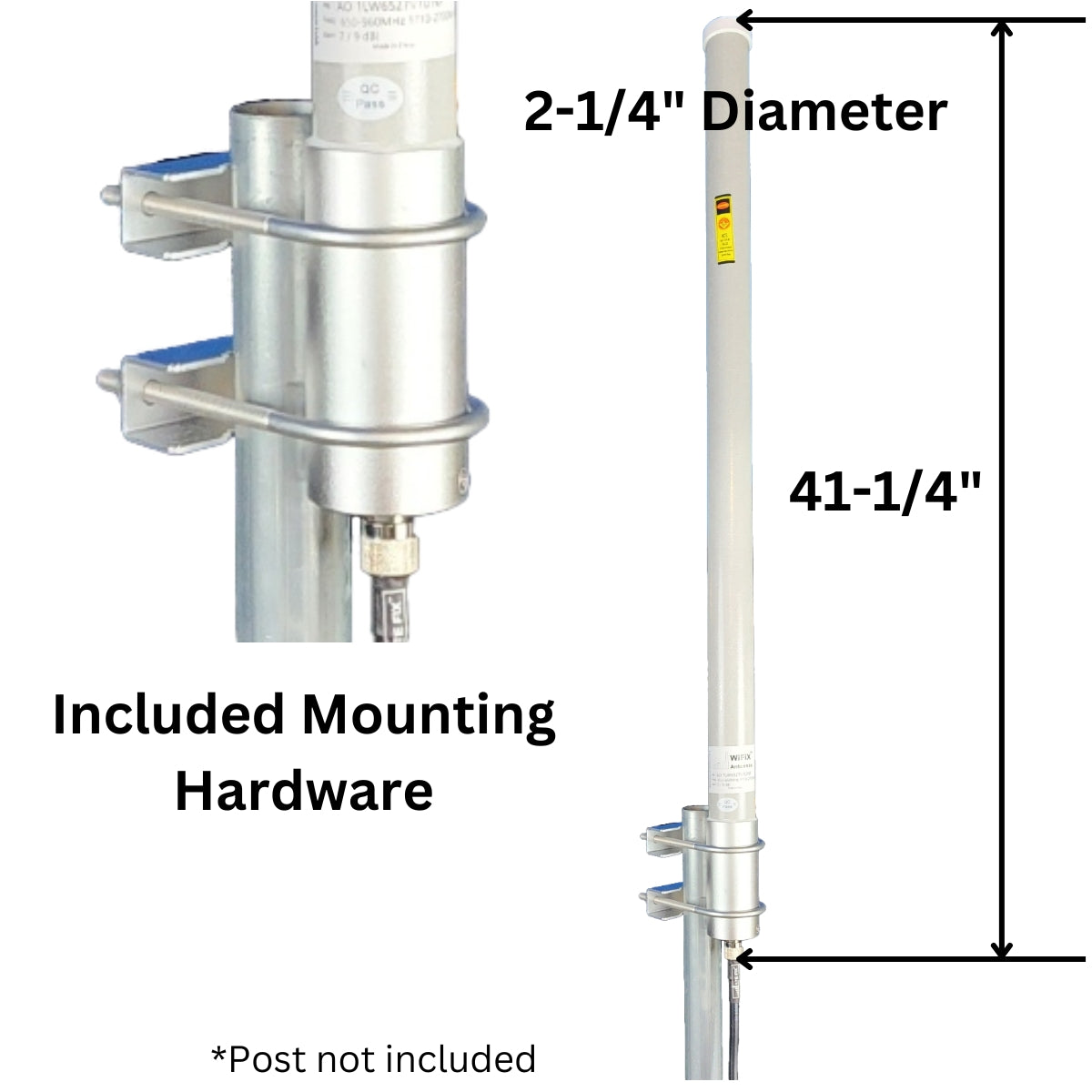

The Pike antenna can be mounted to masts of a max diameter of 2 inches, minimum of 3/4". We recommend 2" masts for maximum strength and stability.
The Pike antenna is equipped with a Type N Female antenna connector on the bottom of the antenna.
[caption id="attachment_47586" align="aligncenter" width="500"] Max of 2" Masts can be mounted to.[/caption]
Included equipment:
1 x Pike 9dBi Omni-Directional Antenna
2 x Weather coated metal mast mount hardware kits.
Click here for the Spec Sheet
