WiSecure Antenna and Enclosure Mounting System

WiSecure Antenna and Enclosure Mounting System

SKU:WISECURE

Regular price $36.99 USD
Regular price Sale price $36.99 USD
Sale Sold out
Shipping calculated at checkout.

17 in stock

View full details

Product Details

The WiSecure antenna mounting system is engineered to couple stability and attractiveness in one product. Its design is made of a special fiberglass reinforced polyamide plastic, which is super rigid--even in extreme weather conditions.  Its innovative design and composite makeup, compared to metal brackets, offers better performance and a rust free life-time. WiSecure further enables the antenna position and aligning in two separate polarization settings.

NOTICE: These are generally purchased to replace a damaged WiSecure mount for one of our WiFiX outdoor antennas. Check to make sure you need one for your antenna, if you are not replacing a broken one. These generally do not break very easily, and isn't common to need one. All WiFiX antennas that use these mounts come with one already included with the antenna, as well as the enclosure assemblies from WiFiX, when noted on the listing. These can be used as a mount for other antennas and enclosures if you need them.

The WiSecure antenna mounting system is made from very solid material with high content of fiberglass, which makes it much more durable than standard steel bracket or magnesium cast, which  is susceptible to cracking.

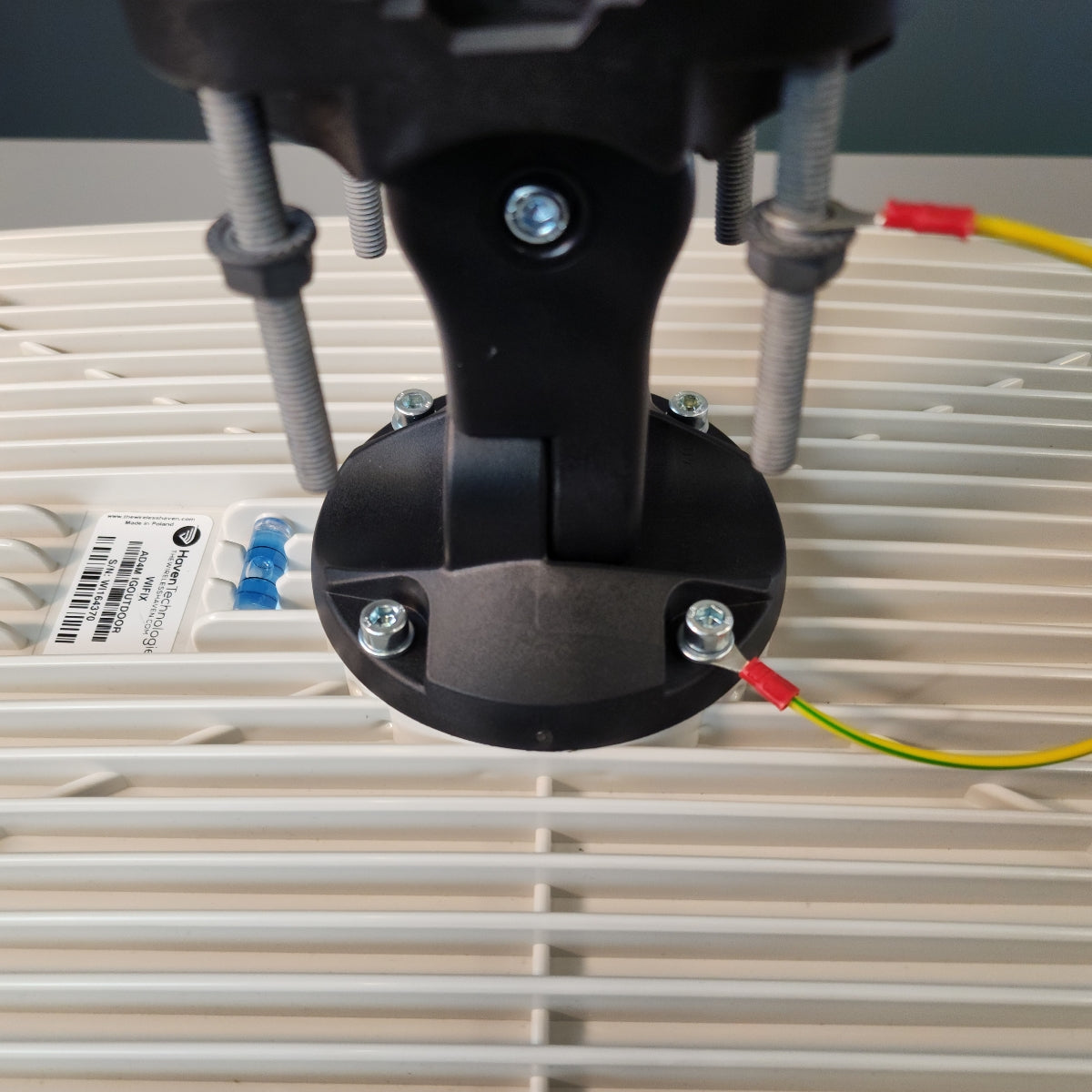

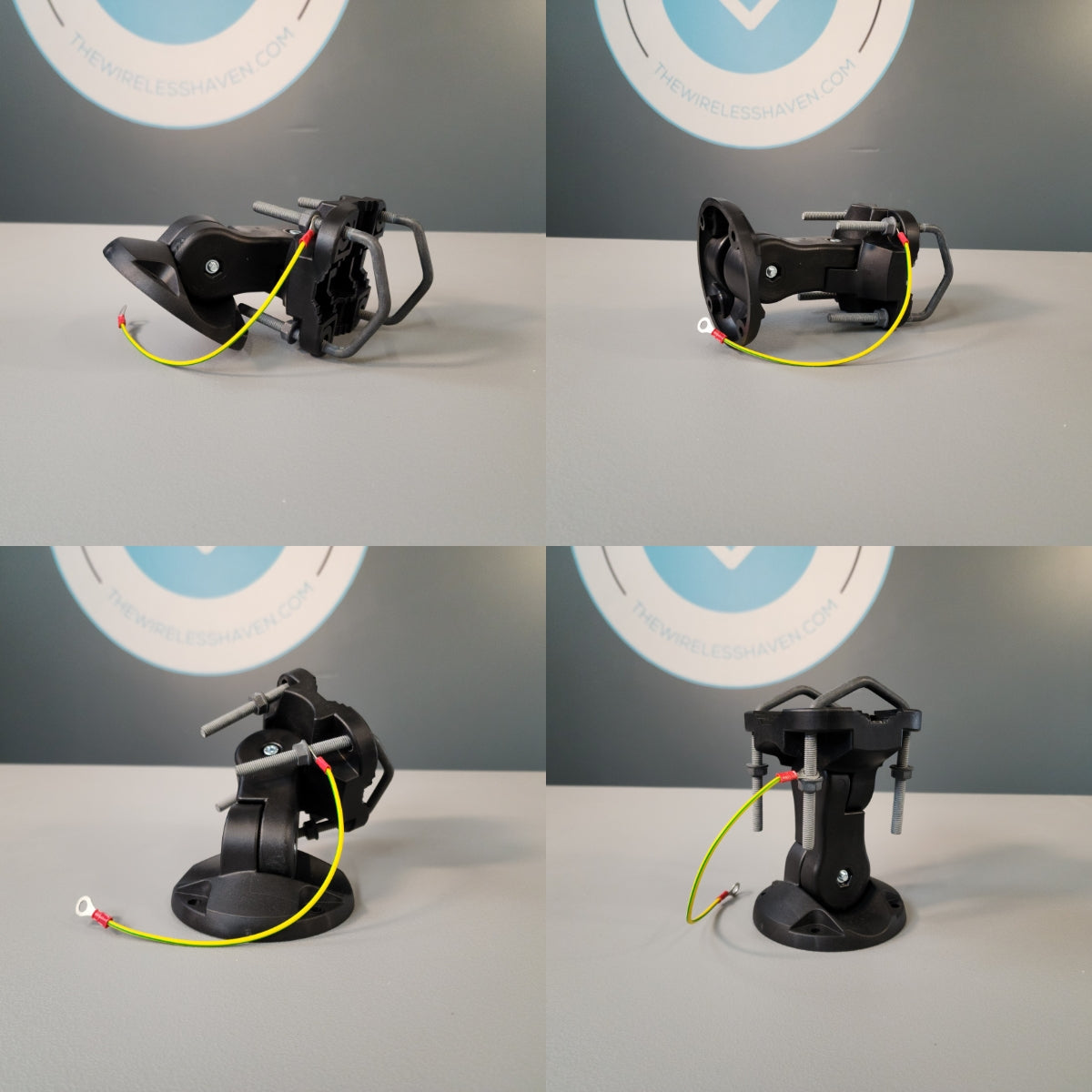

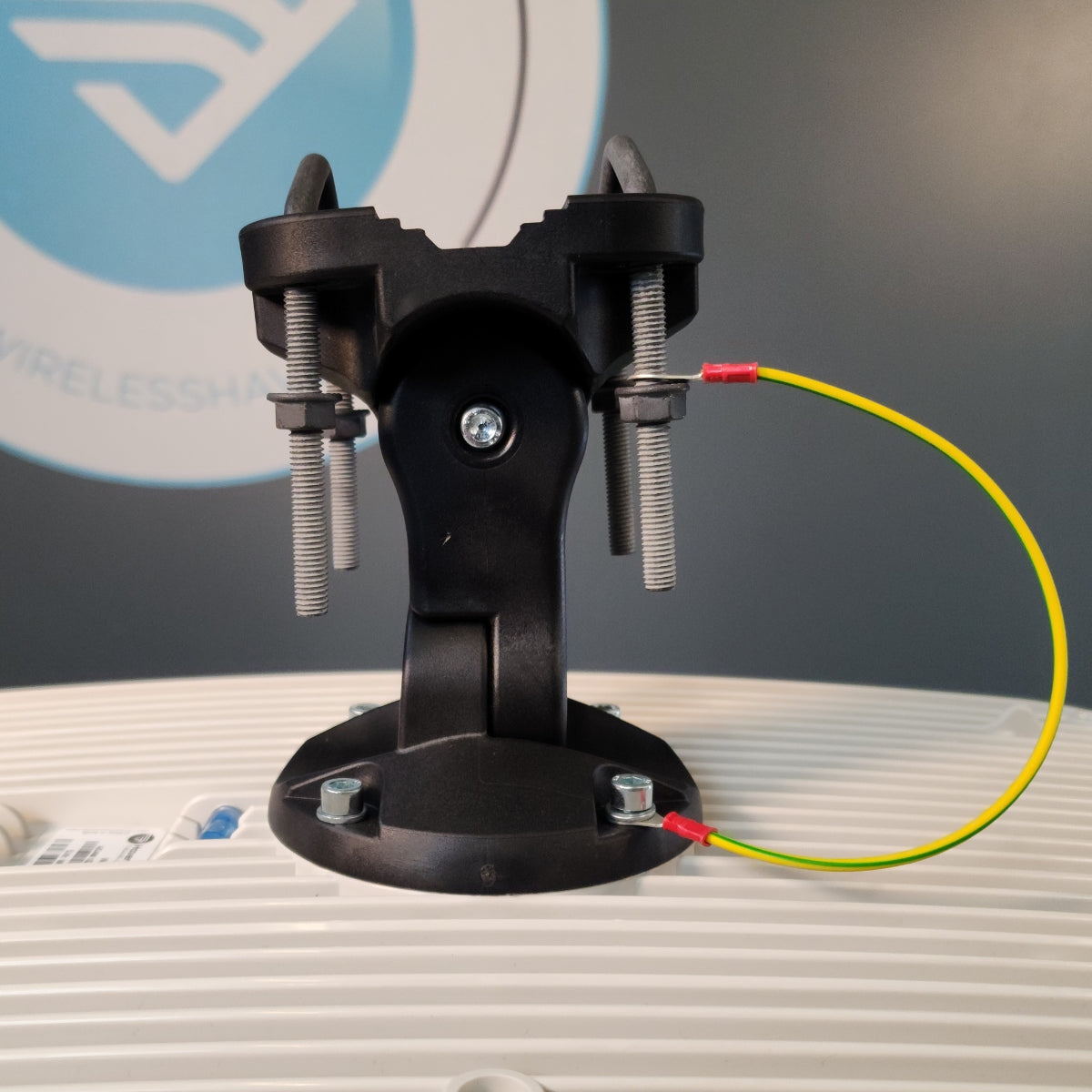

This solution enables mast mounting (diameters up to 2-1/2", minimum 1") and wall mounting (the distance between the mounting holes is 2-11/16", center to center). Our mounting system consists of three parts that enable the adjustment in two planes. The adjustment is possible through the range of 70 degrees (35+35). This helps the user easily set antenna alignment, which simultaneously ensuring the full durability and constant strength of the mounting system. To make the antenna pointing more accurate, a visible angle scale is added onto the moving parts of the WiSecure mount. The WiSecure antenna mounting system is scalable, which means that you can increase the adjustment range by adding WiSecure elements one to another. The DC ground of your antenna system is secured by our mounting bracket (there is a grounding wire included through the mount).

Our WiSecure antenna mounting systems are perfect for mounting a number of items that can be adapted to the WiSecure mount base, but it is specially designed for all of our WiFix ip67 weather secure flat panel directional antennas as well as our enclosure systems.



Check out our video above for a WiMount Antenna Mounting System Demo.

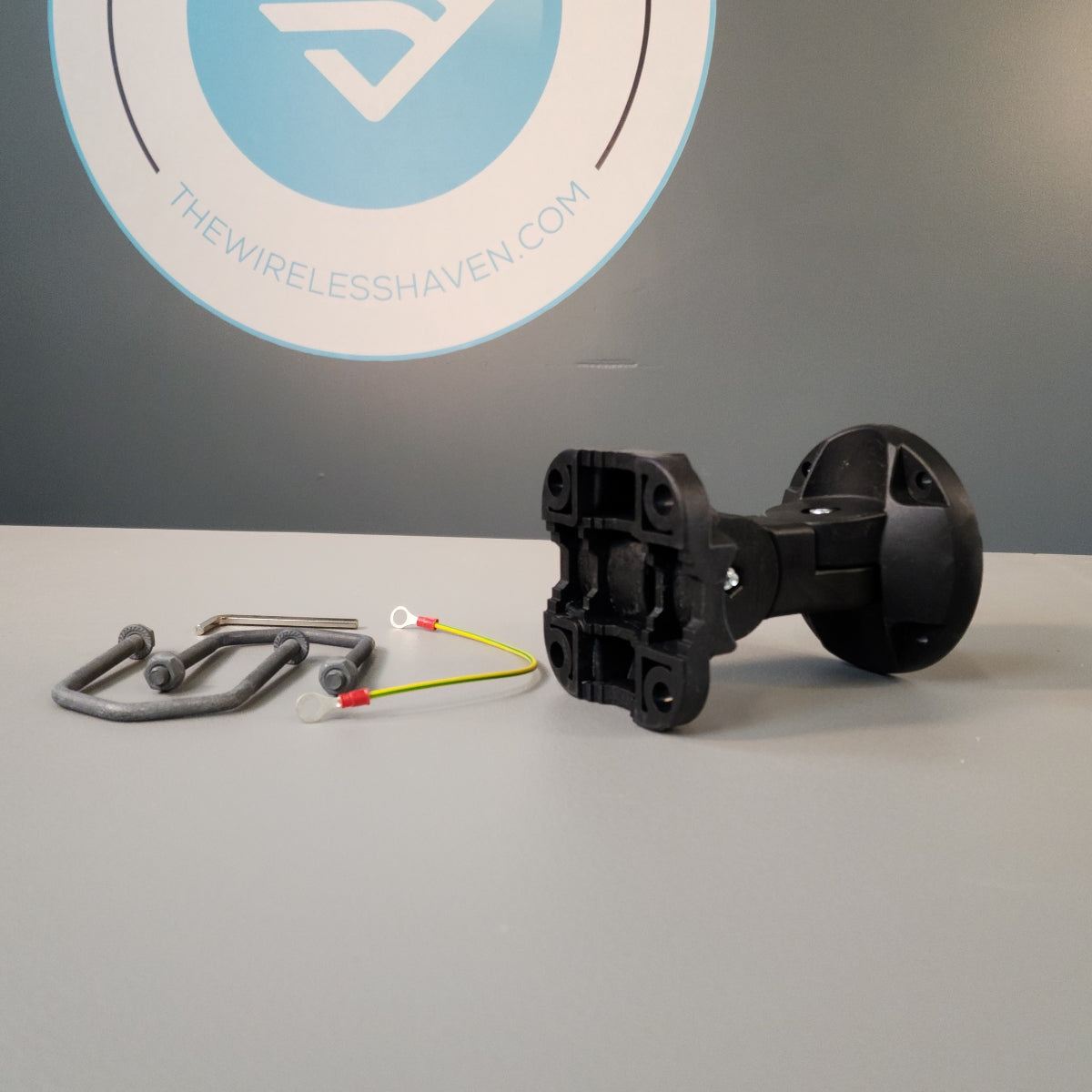

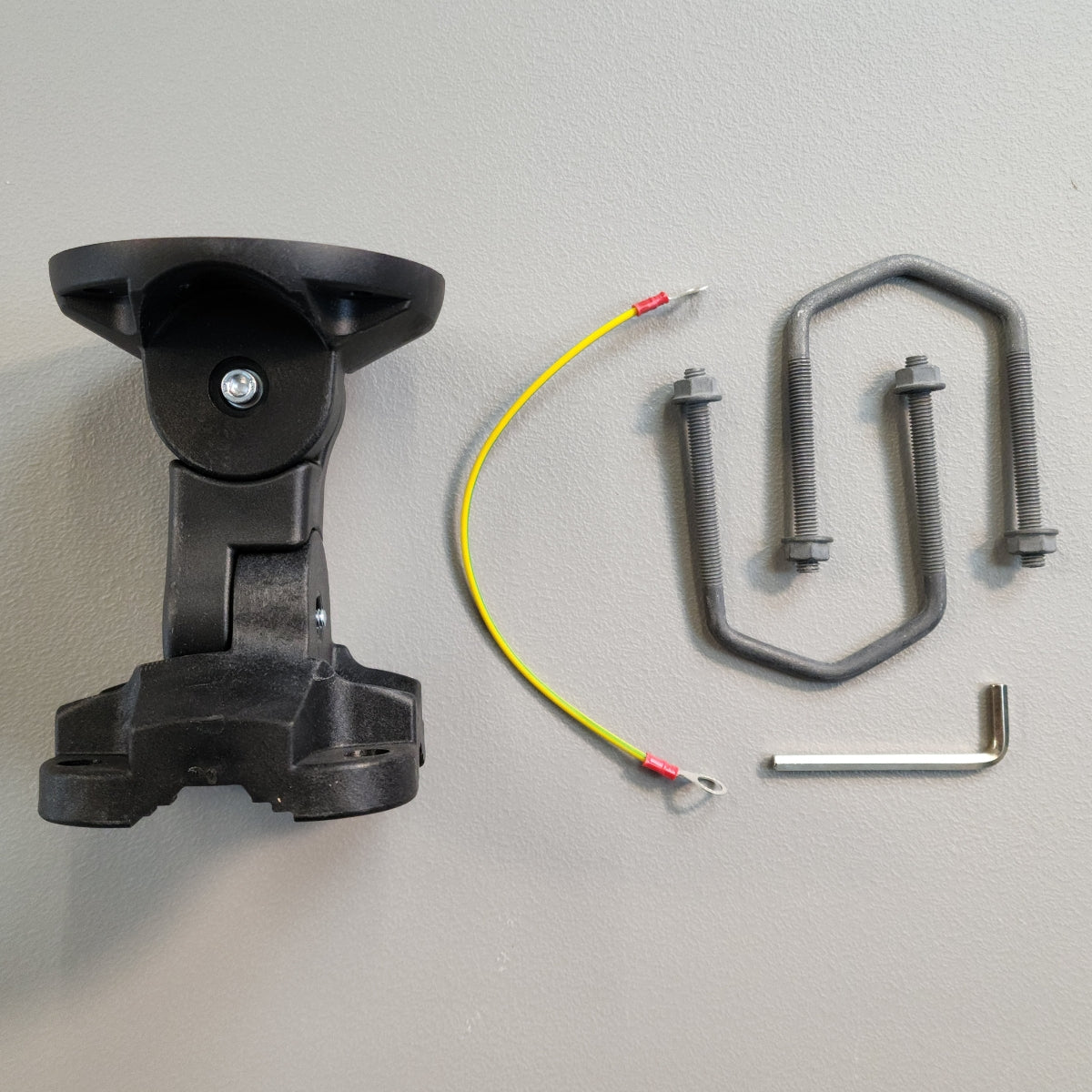

NOTE: This listing is for the articulating mount and U-bolt hardware for mounting to a post or mast. The hardware (bolts and washers typically) to attach this mount base to our antennas is not included in this listing. That hardware is only included with the actual antennas and enclosures. If you need the bolts to attach the antennas, you will have to source them from your local hardware store or an online hardware retailer.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Thomas Lengyel
WiSecure Antenna and Enclosure Mounting System

I very rarely post Any Feedback. This is the third item I have purchased from Haven Technologies.
My first purchase was the ELSYS AmpliaMax 4G Antenna. I wanted a little more directional pointing capability with the antenna,
The WiSecure mounting system was the best solution I found online to accomplish this.

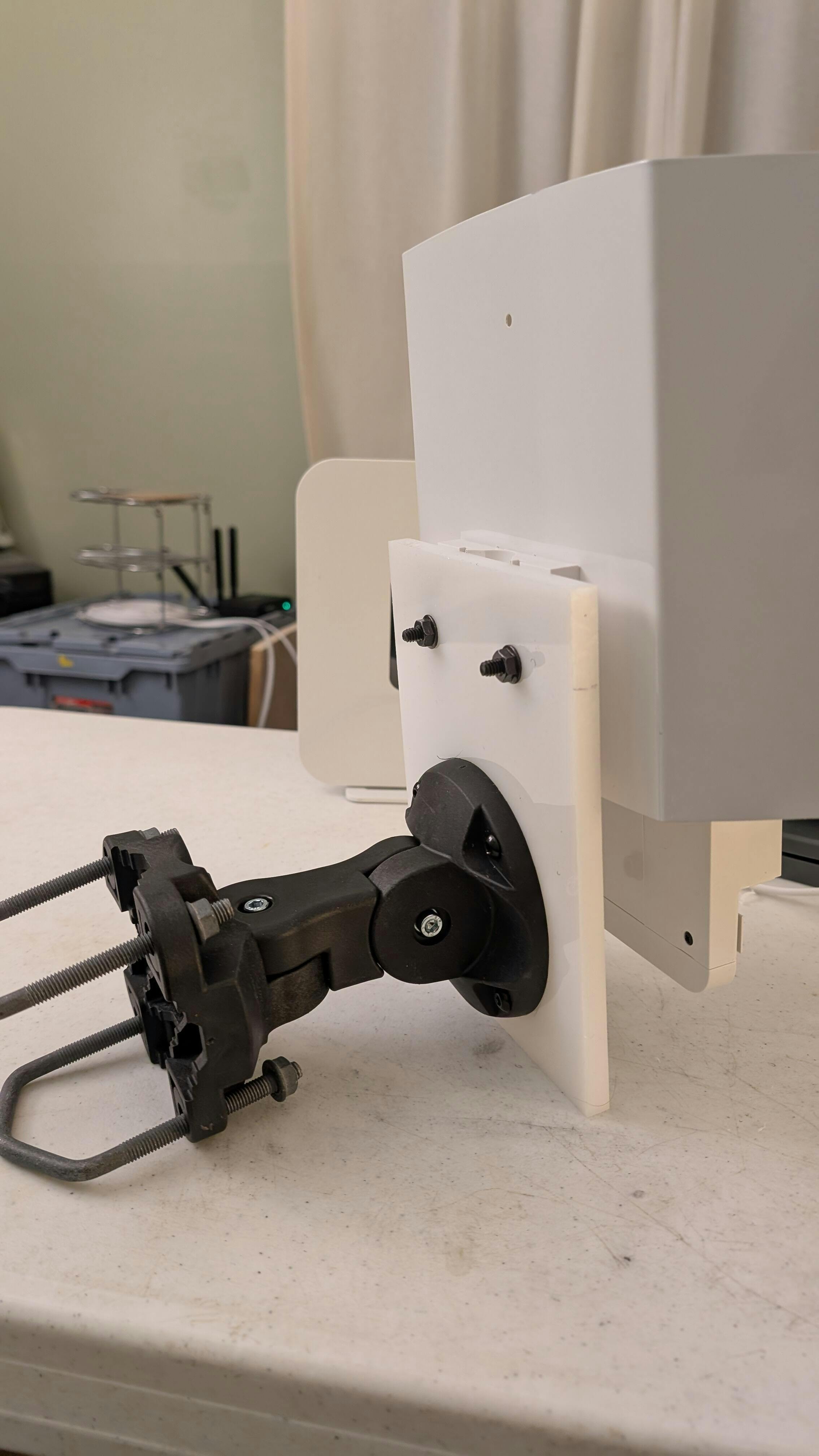

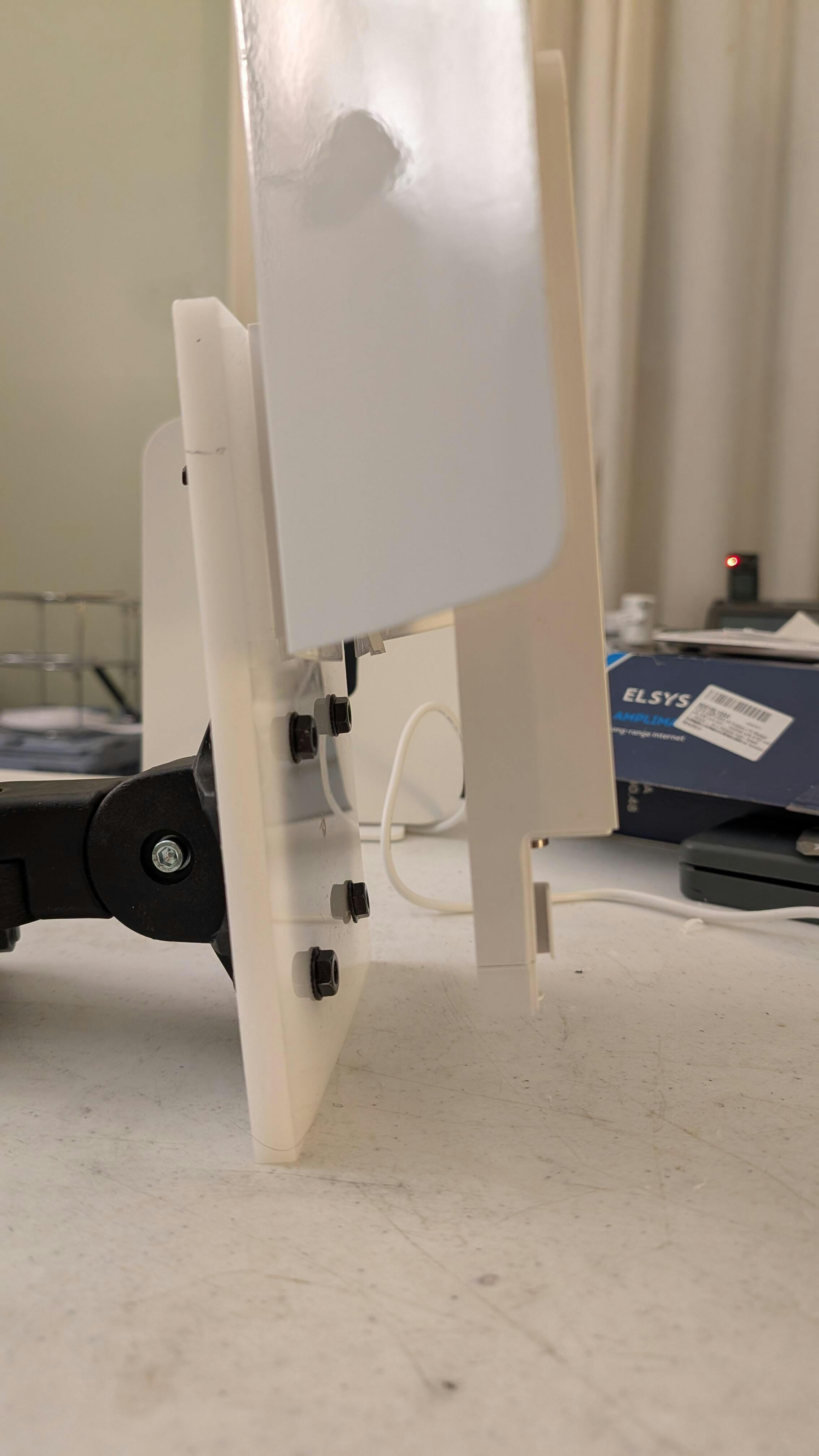

I had to adapt the mount to the ElSYS antenna. That was an easy job using a 6 in x 8 in x 3/8 in thick piece of outdoor rated hard plastic sheet using 1/4- 20 bolts and nuts.
I also bought Haven Technologies cell tower survey for 4 cell towers near me.
As a retired electrician, I was happy to see the amount of useful data that the surveys had in them. A PDF file for each Tower showing the towers latitude and longitude location, the radio line of site above the terrain from my suggested tower height to each cell tower and the compass direction to point the ELSYS antenna. It also included a KZM file to import onto Google Earth Maps (a line drawn in the Map to each cell tower from my TV tower) so I can mouse around the map to see any tree's and buildings that could interfere with the cell signal. Notes posted in Google Earth file has most of the same information that is in the PDF file.
Richard was always available for any tech support I needed via email. Excellent YouTube tutorial videos.
Great to do business with Richard and Haven Technologies.
Thank You.
