Antenna Pigtail Cables | Connect modems and PCB's to antenna connectors or adapters

Antenna Pigtail Cables | Connect modems and PCB's to antenna connectors or adapters

Regular price $4.95 USD
Regular price Sale price $4.95 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Details

Antenna Pigtail Cables

Connect your modems and/or PCB's to antenna connectors or connect cables to cables with cable adapters

Made for your next cellular gateway router build, modem upgrades, or quality replacement parts.

Note: We have been updating our SMA pigtails to "Waterproof" bulkheads. You may or may not get a pigtail with a "Waterproof" type bulkhead connector.

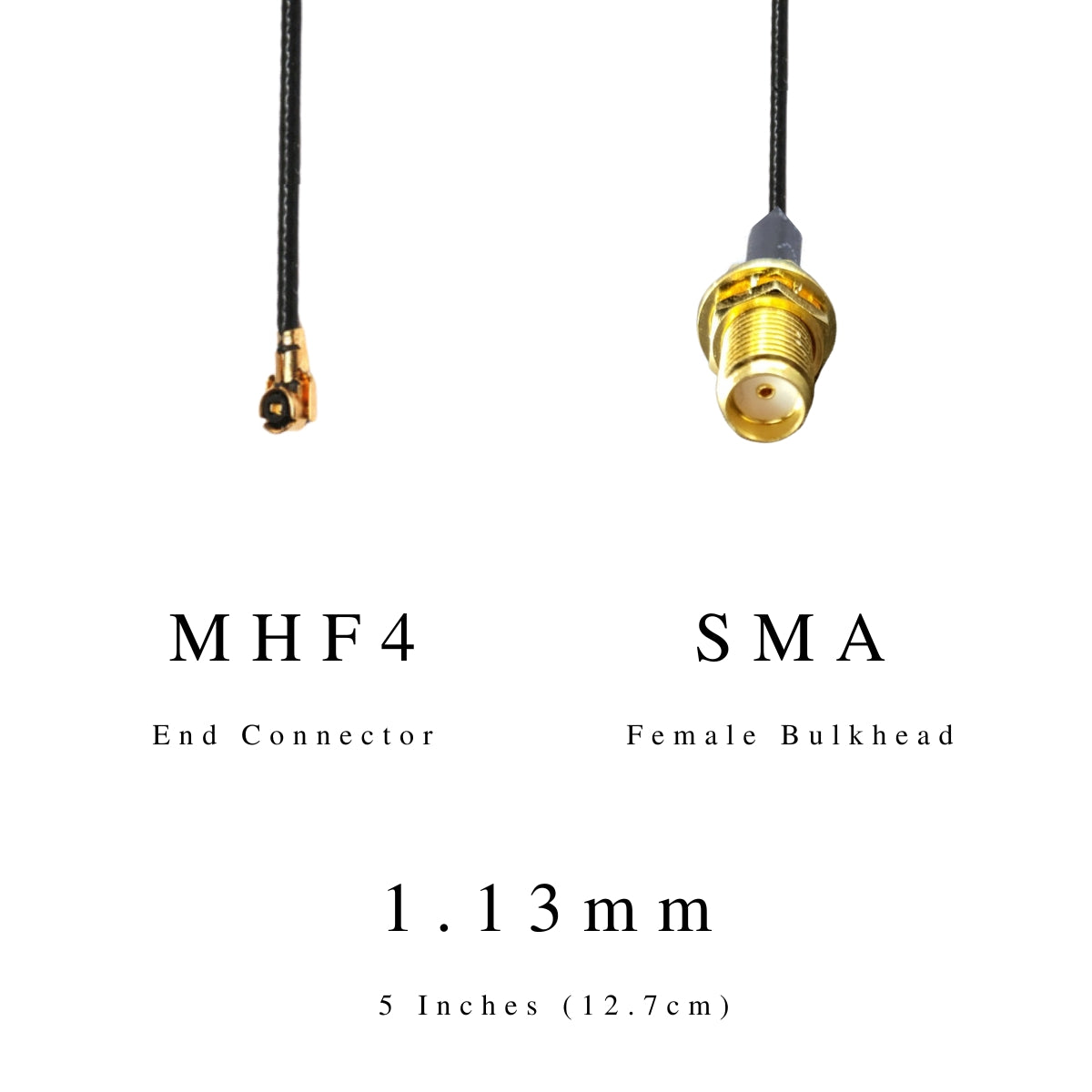

MHF4 connectors are typically used with most M.2 Key B style cellular modems.

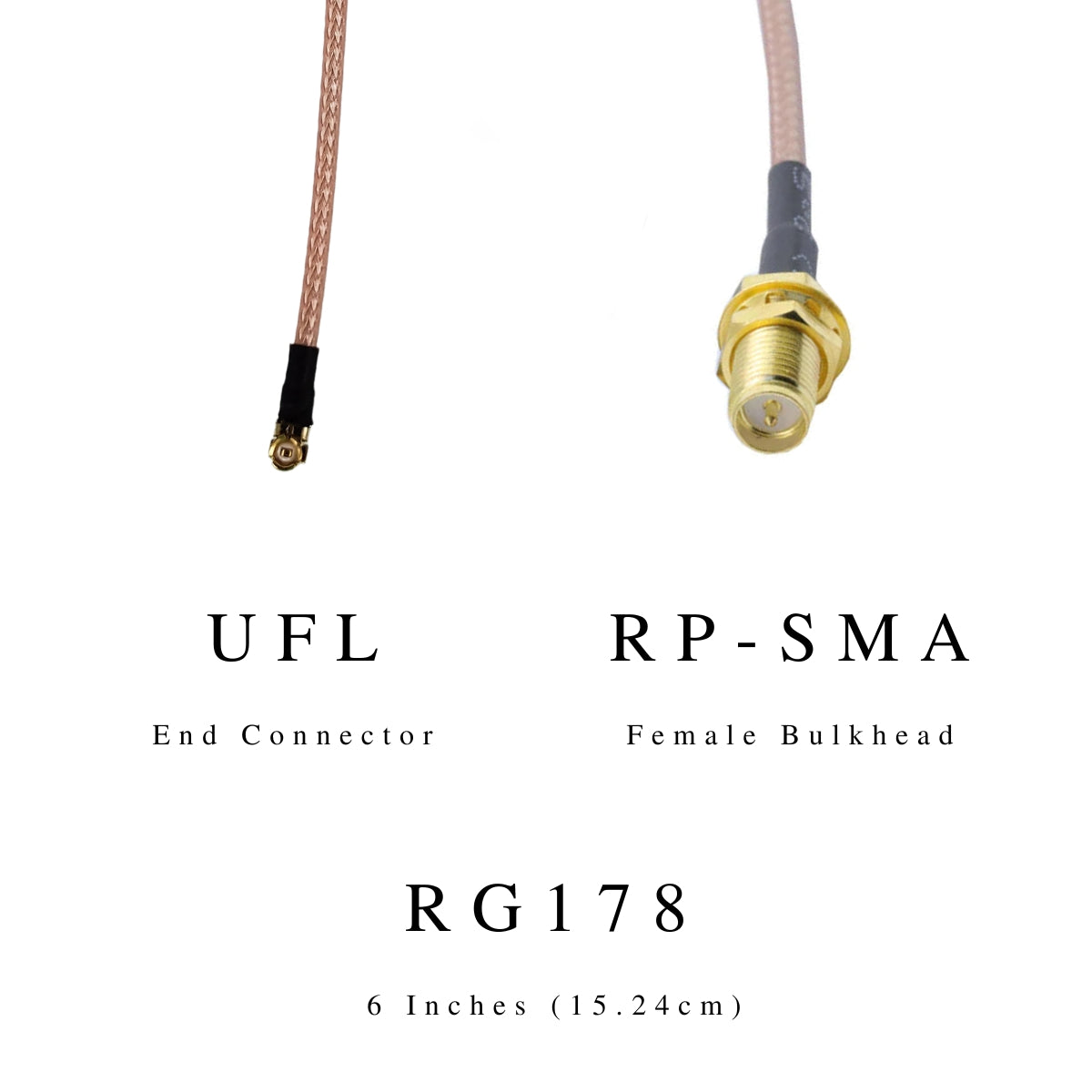

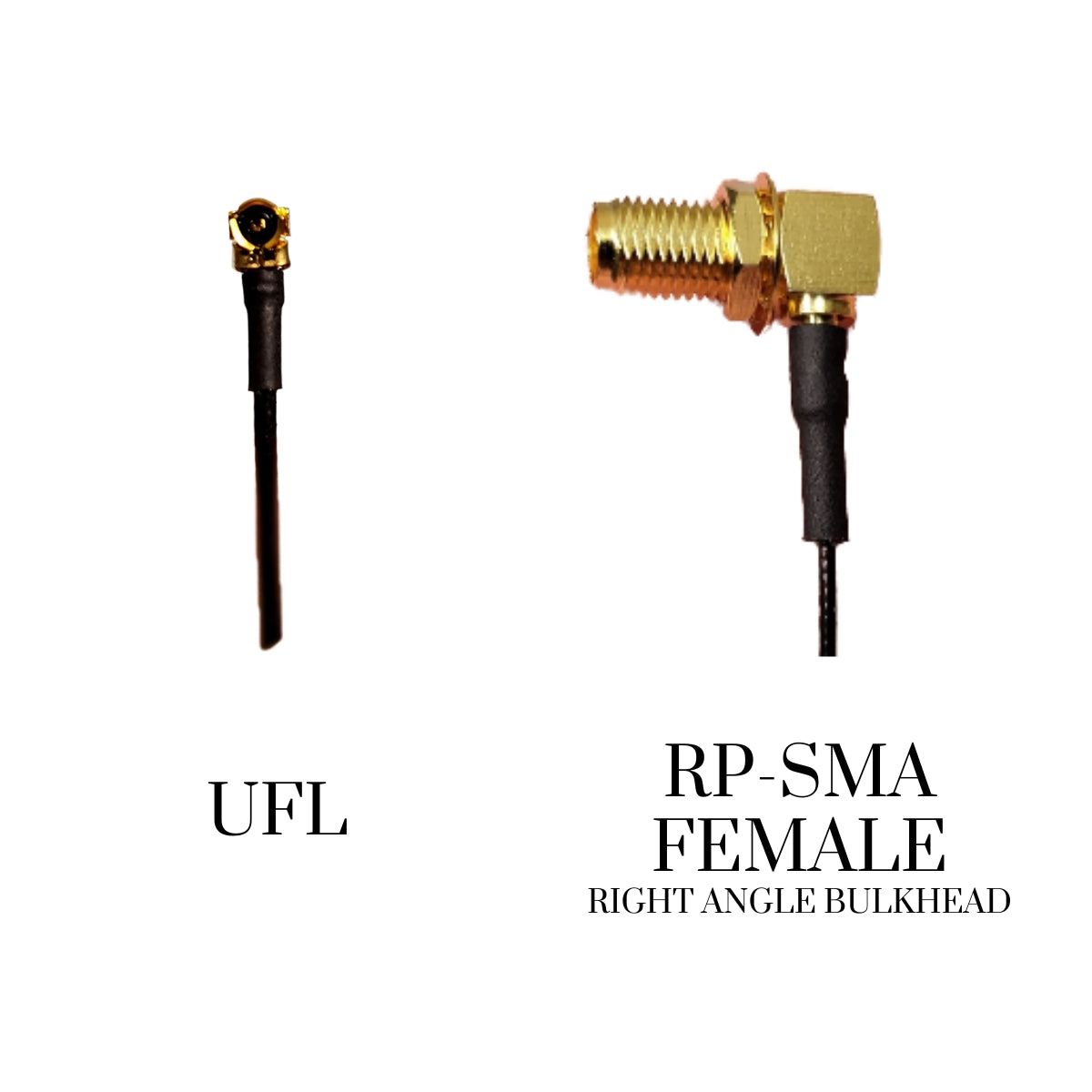

U.FL connectors are typically used with most mini PCI-E cellular modems, and PCB connectors for wifi antennas.

We carry a variety of cellular modems that will work with our antenna pigtails. Click Here to see.

Bulkhead connector is a term used to define a mounting style of connectors.  These type of connectors are designed to be inserted into a panel cutout and secured in place with a nut.

RP-SMA (reverse polarity SMA) is a variation of the SMA connector which reverses the gender of the CENTER PIN interface.  The term "reverse polarity" refers only to the gender of the connector's contact pin and has no relationship to the signal polarity.


Examples of some uses:

Pigtail Example in an Outdoor Enclosure
Pigtails and adapters in use on PCBs and modems

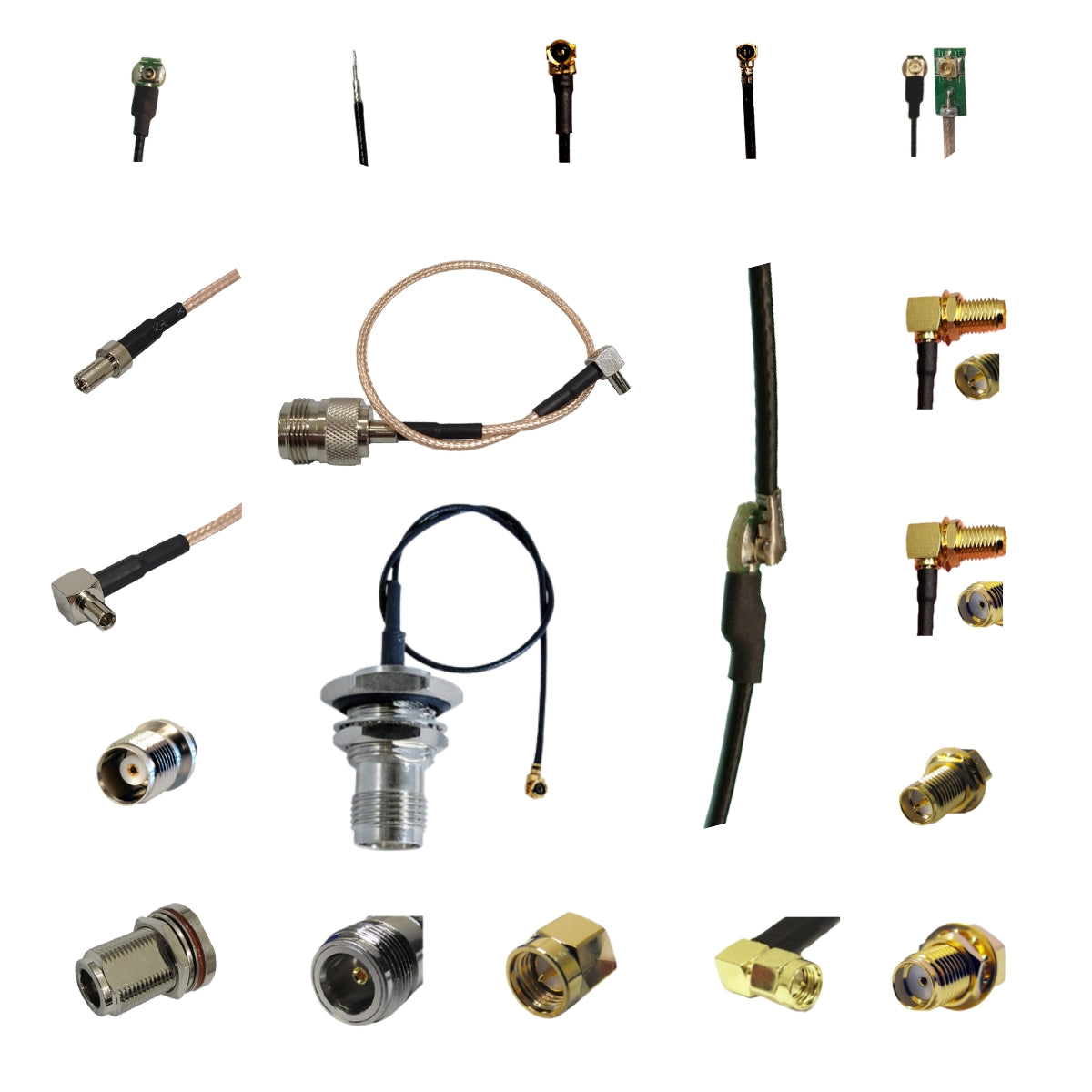

See the graphics below for a visual representation of each type of connector, as it refers to the Connector #1 or Connector #2 options.

Connector #1

Connector #1 - Connectors

Connector #2

Connector #2 - Connectors
